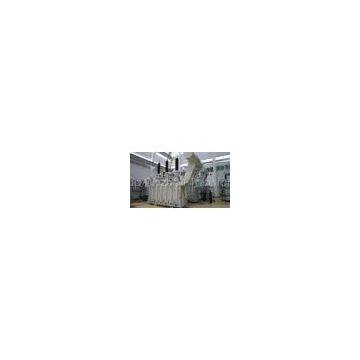

Low Loss Three Phase Electric Power Transformers 6KV - 330KV , 30KVA - 720MVA

Delivery Time:60-90 days
Certification:KEMA,SGS,ISO

Low Loss Three Phase Electric Power Transformers 6KV - 330KV , 30KVA - 720MVA

Quick Detail:

1.Low loss, low noise

2.Low partial discharge

3.High quality, efficiency

4.Safe use

5.Power transformer

Technical Parameter Specifications:

Rated Voltage	6KV/10KV/35KV/38.5KV/66KV/110KV/220KV/330KV
Rated Capacity	30KVA/50KVA/63KVA/80KVA/100KVA/125KVA/160KVA/200KVA/250KVA/315KVA/ 400KVA/500KVA/630KVA/800KVA/1000KVA/1250KVA/1600KVA/2000KVA/4000KVA 5000KVA/6300KVA/10000KVA/16000KVA/90000KVA/720000KVA
Cooling Type	ONAN/ONAF
Winding Type	Double winding / Three winding / Toroidal
Phase	Three Phase / Single Phase
Type	Core Type / Shell Type
Winding Material	Copper
Frequency	50HZ / 60HZ

Type:	S9-16000/66
Voltage ratio:	66±2x2.5% 63±2x2.5%
Low voltage:	6.3; 6.6; 10.5; 11
Connection symbol:	YNd11
No Load Loss:	16.08kW
Load Loss:	73.6kW
Short Circuit Impedance	9%
Total weight (T)	29.7
Dimension(mm)	4980*4080*5310mm
Track center Spacing (mm)	1475

Description:

The 66KV transformer is based upon world-wide advanced technology and also incorporates the experiences of internationally leading transformer companies as well as our own long-term experiences. Low loss, low partial discharge and high short circuit withstand capability series transformers are achieved through innovation and optimization. Our transformer conform entirely with latest national standard GB1094.1~2-1996, GB1094.3-2003, GB1094.5-2003 and international standard IEC-76. Outstanding features as follows:

1. Low loss, and significantly energy-saving. The average no-load loss is 35% lower than prescribed by National Standard GB/T 6451-2008.

2. The core laminations are made up from high-quality cold-rolled grain-oriented silicon steel sheets with chamfered joints and without punched holes, and are stacked without the upper yoke sheets in place, so that they are effectively improved no-load upper together with lower frame.

3. Zigzag directed flow of oil are provided within the windings, so that all parts of the windings can be cooled more evenly.

4. The regulating winding is a separate winding which apart from the high voltage main winding.

5. The windings of one phase are assembled into an integral phase block before placing into the core.

6. The winding manufacture, winding assembly core and winding assembly work are all proceed in totally closed clean department.

7. Core frames in the form of a flat plate are used for clamping the core, and are joined together by side beams.

8. Transformer tanks are fabricated with steel plates wide enough so that there are no weld joints on each surface.

9. Diaphragm membrane is provided within the conservator, preventing direct contact of oil with air, protecting the oil from aging.

10. Reliably sealed, and fine machined for sealed surface. Used double gasket grooves in their jointing surface and kept tight with high quality gasket material.

11. High quality paint is applied as surface finish of the tank and exposed steel parts, after shot-blasting and pretreatment, thus ensuring a durable life and glossy surfa
