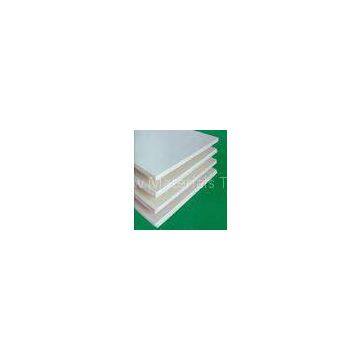

White Concealed Edge Fiberglass Ceiling Board Heat Insulation For Classroom

Name: White Concealed Edge Fiberglass Ceiling Board Heat Insulation For Classroom
Brand: Ecopan
Availability: InStock

FOB Price

USD $6 - $9/2 / Set

1 Set(Min.Order)

Supply Ability 0 Set / Sets per Month
Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name

Ecopan

Place of Origin

China

Product Description

Delivery Time:30 Days
Certification:SGS

White Concealed Edge Fiberglass Ceiling Board Heat Insulation For Classroom

Quick Detail:

non-combustible

no sagging, warpping or delaminating

green building material

excellent sound absorption

With different pattern available

Good Characteristics:

1, Acoustical absorbing.

It is one of best sound absorbing materials. The sound absorbing coefficient , NRC of our ceiling is about

1.0 . sound wave can not produce echo on its surfacing, it can control and adjust effectively the time of

reverberation and drop noise and improve timbre.

2, Fire-resistant

It is fireproof level A ( non-flammable level)

3, Energy save, heat preservation

the ceiling has good property of heat preservation. If apply to the place where exists air-condition, it can

reduce the effect from environment to indoor temperature and save energy source effectively.

4, High strength

Adapt double-facing fiberglass felt to compound. So it improves its strength and level greatly.

5, Moisture resistant

6, Light weight

7, Easy install

Description:

material	torreefaction compounded high density fiberglass wool
color	white, black and others to order
face	special painting laminated with decorative fiberglass tissue
fire-resistant	Class A, non- combustible according to GB9624-1997 tested by China’s Authority Inspection Center
thermal-resistant	≥0.5 (m2·k/w)
humidity	dimensionally stable with RH up to 95% at 40°C,no sagging,wrapping or delaminating
moisture rate	≤1%(JC/T670-2005)
enviromental impact	tiles and packing are fully recyclable
safety	limit of radionuclides in building materials
specific activity of 226Ra	Ira≤1.0
specific activity of 226Ra, 232Th, 40K	Ir≤1.3

Applications:

halls, classrooms, offices, shopping centers, etc.

Specifications:

Thickness:12mm,15mm,20mm,25mm

Size:595*595mm , 600*600mm , 600*1200mm

Competitive Advantage:

Fire-resistant	As fiberglass consists of rock fibers, which are combustible. So both basic board and decorative facing of Ecopan panel has achieved Class A fire-resistant property, which has tested by National Authority of China.
Thermal-insulation	Block off the colds outdoor and prevent hear from spreading in or out from indoors. It can make energy-saving and also to create a quiet and comfortable environment.
Humidity	Dimensionally stable in high humidity, no sagging, warpping or delaminating compared with normal wet-craft made mineral wool acoustical panel.
Elegant	Standard quiet white facing, personalized designs will give you a fashionable and comfortable visual feeling. Also other various colors can be ordered.
Cleanability	Special painting on the facing make Ecopan fiberglass panel can be longtime used and seldom absorb dust or Vacuum. You can clean the face with eight wet or dry mop.
Environmental	Fungi and stains resiatant, no pollution. It is a new kind of green and healthy building material. Fully recyclable.
Safety and Convenience	No safeguards are needed for the insulation. The working site will still keep clean and tidy as no fibers will fall off. Either exposed or concealed grids are available for the installation. Because of the light weight, the panels are widely used in constructions with large spans in space, such as gymnasiums, exhibition halls, shopping centers, etc. They are easy to trim and install.

Product series:

Test report:

1)The Specific Activity of Radioactive Nuclide:
226RA is undetected;
232Th is undetected;
40K is 28.3Bq/kg

2)Visible Reflectance:
Visible Reflectance result is 0.89

3)Sound absorption coefficient:
NRC=0.85
According to GB/T16731-1997 \"The gradation of sound absorption property for absorbent productio
