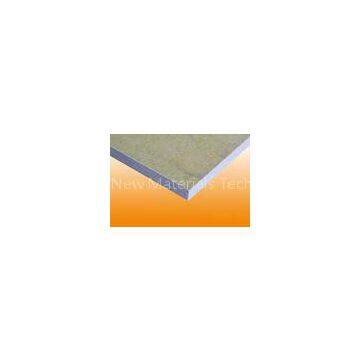

Acoustical Fiberglass Ceiling Panels Tiles For Classroom Heat Insulation 595 * 595mm

Delivery Time:30 Days
Certification:SGS

Quick Detail:



non-combustible

no sagging, warpping or delaminating

green building material

excellent sound absorption

With different pattern available


Description:

Material: torrefaction compounded high density fiberglass wool

Face: special painting laminated with decorative fiberglass tissue

Color: white, black and others to order

Fire-resistant: Class A, non-combustible according to GB9624-1997, tested by china’s authority inspection center

Thermal-resistant: ≥0.4(m2·k/w)

Humidity: dimensionally stable with RH up to 95％ at 40℃, no sagging, warpping or delaminating.

Moisture rate: ≤1％(JC/T670-2005)

Enviromental impact: tiles and packings are fully recyclable.

Safety: limit of radionuclides in building materials, specific activity of 226Ra: Ira≤1.0, specific activity of 226 Ra, 232Th, 40K: Ir≤1.3

Applications:

halls, classrooms, offices, shopping centers, etc.

Specifications:

Thickness:12mm,15mm,20mm,25mm

Size:595*595mm , 600*600mm , 600*1200mm

Benefit:

Acoustic, up to NRC 0.85 Light weight, easy to install, dimensionally stable Decorative with elegant design Fireproof Moisture resistance High strength and long lasting

Competitive Advantage:

Fire-resistant	As fiberglass consists of rock fibers, which are combustible. So both basic board and decorative facing of Ecopan panel has achieved Class A fire-resistant property, which has tested by National Authority of China.
Thermal-insulation	Block off the colds outdoor and prevent hear from spreading in or out from indoors. It can make energy-saving and also to create a quiet and comfortable environment.
Humidity	Dimensionally stable in high humidity, no sagging, warpping or delaminating compared with normal wet-craft made mineral wool acoustical panel.
Elegant	Standard quiet white facing, personalized designs will give you a fashionable and comfortable visual feeling. Also other various colors can be ordered.
Cleanability	Special painting on the facing make Ecopan fiberglass panel can be longtime used and seldom absorb dust or Vacuum. You can clean the face with eight wet or dry mop.
Environmental	Fungi and stains resiatant, no pollution. It is a new kind of green and healthy building material. Fully recyclable.
Safety and Convenience	No safeguards are needed for the insulation. The working site will still keep clean and tidy as no fibers will fall off. Either exposed or concealed grids are available for the installation. Because of the light weight, the panels are widely used in constructions with large spans in space, such as gymnasiums, exhibition halls, shopping centers, etc. They are easy to trim and install.

Product series:

Test report:

1)The Specific Activity of Radioactive Nuclide:
226RA is undetected;
232Th is undetected;
40K is 28.3Bq/kg

2)Visible Reflectance:
Visible Reflectance result is 0.89

3)Sound absorption coefficient:
NRC=0.85
According to GB/T16731-1997 \"The gradation of sound absorption property for absorbent productions\",the absorption properties of tested acoustic structure is 1st class.

Fiberglass board workshop:

Package:

Install Method:

Use exposed grids, grids width:15mm or 24mm

Tiles are easy to trim and install.

Both inches and centimeters grids are available.

What is acoustic insulation? Most people think if we just block off the noises outdoor that is acoustic insulation. Actually it is not perfectly right. Acoustic insulation works by absorbing sound and vibrational energy. The key principle is to convert sound energy into kinetic energy. Glasswool is a good sound insulator because the flexing action of the fibers absorbs the sound and dissipates it in a form of heat energy if such low density as to be virtually undetectable. Glasswool has excellent sound absorption characteristics and with complementary building materials. It enhances the performance if a structure by minimizing the passage of sound. Acoustic irritation is reduced and hearing protected. So galsswool-made
