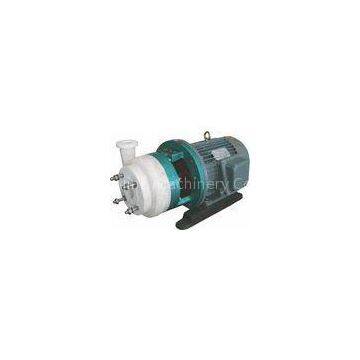

3KW Fluid Corrosion Chemical Resistant Transfer Pumps For Acid / Alkali 40FSB-30
Sinofine 40FSB-30 centrifugal pump can be used in these location:
Cleanout system.
Every series of food machining and medicine produce
Environment protect system.
Waste water treatment for papermaking, metallurgy, galvanization, smelting, dye and so on.
Electroplate and Dyeing system.
Industrial and chemical sump treatment
Explosion proof motor for oil, alcohol and other explosive liquid
Sinofine FSB centrifugal pump use a compact structure, it does not have the vibration, the noise is low, movement reliable steady. Sinofine FSB centrifugal pump uses the high quality mechanical seal, does not have divulging, the service life is long. The open type impeller, can process the sewage and including the tiny sundry goods liquid, delivery capacity.Sinofine FSB centrifugal pump makes use of an impeller as the primary source of its pumping action. The fluid enters the intake valve through the impeller; it is turned by the fan blades that are turned by the external motor. As the fluid turns, it is forced to the outside of the impeller, where it then flows with more kinetic energy than before it entered the impeller. It then flows out of the discharge pipe down another pipe or dispersed because it has enough kinetic energy to get it either down or out of the pipe from the impeller.
Sinofine FSB centrifugal pump has anticorrosive, wear-resisting, thermostable, does not get older, the mechanical strength to be high, the revolution is steady, the structure advanced reasonable, the sealing property strict reliable, the dis-assemblage overhaul is convenient, service life long and so on merits, widely is suitable for professions and so on chemical industry, drugs manufacture, petroleum, metallurgy, smelting, galvanization, dye, agricultural chemicals, papermaking, food, spinning , under - 85°C~200°C temperature condition long-term transportation arbitrary concentration sulfuric acid, hydrochloric acid, hydrofluoric acid, nitric acid, strong alkali, strong oxidant, organic solvent, reducing agent and so on strong corrosive medium, is the present world is of most anti-corrosive equipment.
Model Significance:
40FSB-30
40 - The pump’s inlet diameter is 40mm
FS - The material of the liquid carrying part is fluoroplastic alloy
B- Single-stage single-suction centrifugal pump
30 - The pump lift is 30mm
|
Model |
Flow (m3/h) |
Lift (m) |
Speed (r/min) |
Motor Power (kw) |
Efficiency % |
NPSH (m) |
Weight (kg) |
|
25FSB-25(D) |
2.5 |
26 |
2900 |
1.5 |
48 |
3.0 |
42 |
|
3.6 |
25 |
||||||
|
6 |
23 |
||||||
|
40FSB-20(D) |
6 |
22 |
2900 |
3 |
42 |
3.0 |
52 |
|
10 |
20 |
||||||
|
12 |
17 |
||||||
|
40FSB-30(D) |
6 |
31 |
2900 |
3 |
36 |
3.0 |
52 |
|
10 |
30 |
||||||
|
12 |
2 |
