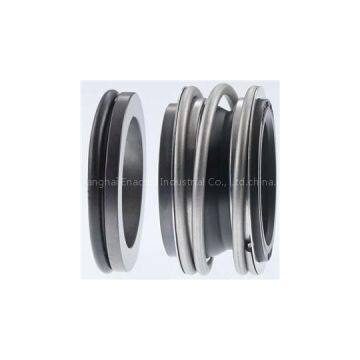

Help CenterEnactus-MG1 Burgmann MG1 Replacement
Negotiable
MOQ: 1 Carton (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
Place of Origin:
China
Model Number:
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days
Related Products
-
Enactus-MG9 Burgmann MG9 ReplacementNegotiableMOQ: 1 -
Enactus -MBS682 Burgmann MBS682 ReplacementNegotiableMOQ: 1 Piece
-
Enactus-LY9DSTT Burgmann -LY9DSTT ReplacemNegotiableMOQ: 1
-
Enactus-LY9DTSS Burgmann LY9DTSS ReplacementNegotiableMOQ: 1 Unit
-
Enactus-LY9DZTT Burgmann LY9DZTT ReplacementNegotiableMOQ: 1
Place of Origin
China
FeaturesFor plain shaftsSingle and dual sealElastomer bellows rotatingUnbalancedIndependent of direction of rotationNo torsion on bellowsAdvantagesShaft protection over entire seal lengthProtection of seal face during installation due to special bellows designInsensitive to shaft deflections due to large axial movement abilityUniversal application opportunitiesImportant material certifications availableHigh flexibility due to wide offer on materialsSuitable for low-end sterile applicationsSpecial design for hot water pumps (RMG12) availableDimension adaptions and additional seats availableOperating rangeShaft diameter:d1 = 10 … 100 mm (0.39" ... 3.94")Pressure: p1 = 16 bar (230 PSI),vacuum ... 0.5 bar (7.25 PSI),up to 1 bar (14.5 PSI) with seat lockingTemperature:t = -20 °C … +140 °C(-4 °F … +284 °F)Sliding velocity: vg = 10 m/s (33 ft/s)Admissible axial movement: ±2.0 mmMaterialsSeal face: Carbon graphite antimony impregnated (A), Carbon graphite resin impregnated (B), Silicon carbide (Q1), Tungsten carbide (U3)Seat: Silicon carbide (Q1, Q2), Tungsten carbide (U3), Special cast CrMo steel (S), Aluminium oxide (V)Elastomer: NBR (P), EPDM (E), FKM (V), HNBR (X4)Metal parts: CrNiMo steel (G), Hastelloy® C-4 (M)Recommended applicationsProcess industryChemical industryPulp and paper industryWater and waste water technologyFood and beverage industrySugar industryWater, waste water, slurries (up to 5 % by weight)Pulp (up to 4 % otro)LatexDairies, beveragesSulfide slurriesChemicalsOilsChemical standard pumpsHelical screw pumpsStock pumpsCirculating pumpsSubmersible pumpsWater and waste water pumpsOil applicationsServiceProvide special designAccording to the requirements and conditions for the custom processing
