808nm Diode Lasers 30W 0.22N.A. , High Power Pump Laser Diode
Negotiable
/ Piece
1 Piece(Min.Order)
- 0 Piece / Pieces per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
8mm Potentiometer: Horizontal, 10K Ohm+/-10%, with Rotary Switch, Shaft Length 15mm, Used for Walkie Talkies, Radios and Other Instruments and Equipment
-
9mm horizontal single gang rotary potentiometer knob adjustable resistance with rotary switch
-
9mm horizontal single gang rotary potentiometer knob adjustable resistance with rotary switch
-
8mm metal shaft horizontal type dual gang Rotary Potentiometer with rotary switch, use for interpone and Small Audio Device, Small Radio
-
8mm metal shaft horizontal type dual gang Rotary Potentiometer use for interpone and Small Audio Device, Small Radio
-
8mm metal shaft horizontal type rotary potentiometer knob integrated push switch , 10KΩ，adjustable resistance VR
Product Details
| Brand Name: | BWT | Place of Origin: | China | Model Number: | K808DABCN-30.00W |
Product Description
Certification:ISO9001

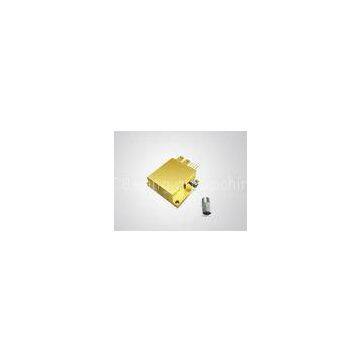

0.22N.A. 808nm 30W High Brightness Pump High Power Diode Lasers K808FABCN-30.00W
Features:
30W output power808nm wavelengthStandard fiber coupling for 400µm core diameter0.22N.A.Compact package
Application:
Specifications (25℃) | Symbol | Unit | K808FABCN- 15.00W | K808FABCN- 30.00W |
|
Optical Data | CW-Output Power | P0 | W | 15 | 30 |
Center Wavelength | λc | nm | 808 |
||
Tolerance of λ | - | nm | ±3 |
||
Spectral Width (FWHM) | △λ | nm | <3 |
||
Temperature Drift of λ | - | nm/℃ | ~0.3 |
||
Connector Data | Fiber Core Diameter | Wc | µm | 400 |
|
Fiber Numerical Aperture | N.A. | - | 0.22 |
||
Fiber Connector | - | - | SMA-905 |
||
Electrical Data | Operating Current | Iop | A | 9 | 9.5 |
Threshold Current | Ith | A | 1.2 | 1.2 |
|
Conversion Efficiency | η | % | 44 | 40 |
|
Slope Efficiency | ηD | W/A | 1.9 | 3.6 |
|
Operating Voltage | Vop | V | 3.8 | 7.8 |
|
Reverse Voltage | Vre | V | 4 | 8 | |
Others | Operating Temperature | Top | ℃ | 10~30 |
|
Storage Temperature | Tst | ℃ | -20~80 |
||
Expected Lifetime | MTTF | h | >10, 000 |
||
Dimensions | - | mm | ~44.5×31.8×18.0 |
||
Lead Soldering Temperature | Tis | ℃ | 260(10 sec.) |
