Certification:3C/CE

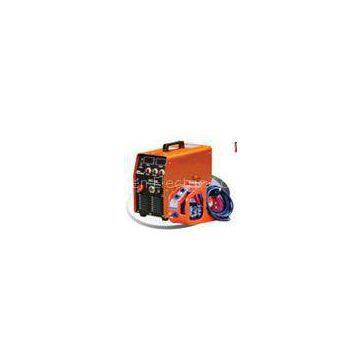

mig200f high frequency arc welding machine dc igbt inverter tig welder
Quick Detail:
Model:MIG200Y(compact),MIG200F(separate),MIG200L(wire-pulling type,suitable for aluminum welding)
DC IGBT Inverter Technology ,
Input:1P/220V±10%,50/60HZ
Rated duty cyle:60%(under 40℃
Suitable for carbon,stainless steel,copper and other nonferrous metals(except for aluminum,magnesium and their alloys)
Suitable Wire Dia:Ø0.6~Ø0.8mm,thickness:0.8~6mm
Application:
1. Used for carbon steel,iron and other metal material.
2. Applied in vehicle,motorcycle,bike,container,metal structure and machinery industry
3. MIG250F with pull wire torch can be used to weld aluminium and alloy
Specifications:
| Parameter Item |
Rated input |
Rated input capacity |
Rated duty cycle |
Rated output current |
Rated output voltage |
Open circuit voltage |
Efficiency |
|
MIG200Y |
1-Phase,220V±10%,50/60Hz |
6.4 |
60 |
50-200 |
15-24 |
50 |
85 |
|
MIG250Y |
3-Phase,380V±10%,50/60Hz |
9.4 |
60 |
50-250 |
15-26.5 |
50 |
85 |
|
MIG200F |
1-Phase,220V±10%,50/60Hz |
6.4 |
60 |
50-200 |
15-24 |
50 |
85 |
|
MIG250F |
3-Phase,380V±10%,50/60Hz |
9.4 |
60 |
50-250 |
15-26.5 |
50 |
85 |
|
MIG250L |
3-Phase,380V±10%,50/60Hz |
9.4 |
60 |
50-250 |
15-26.5 |
50 |
85 |
|
Parameter |
Power factor |
Suitable wire size |
Insulation |
Shell protection |
Weight |
Dimension |
|
MIG200Y |
0.9 |
Ф0.6,Ф0.8,Ф1.0 |
F |
IP21S |
26 |
528×235×440 |
|
MIG250Y |
0.9 |
Ф0.6,Ф0.8,Ф1.0 |
F |
IP21S |
29 |
528×235×440 |
|
MIG200F |
0.9 |
Ф0.6,Ф0.8,Ф1.0 |
F |
IP21S |
21 |
505×228×380 |
|
MIG250F |
0.9 |
Ф0.6,Ф0.8,Ф1.0 |
F |
IP21S |
23 |
505×228×380 |
|
MIG250L |
0.9 |
Ф0.6,Ф0.8,Ф1.0 |
F |
IP21S |
23 |
505×228×380 |
Competitive Advantage:
1. IGBT inverter technology,current-type control,perfect quality and performance.
2. Controlled by electric reactor,little spatter,deep welding pool,good welding seam.
3. Closed
