2T - 500T Automatic Pipe Welding Rotators Vessel Welding Turning Roller

FOB Price

Negotiable / Set

1 Set(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Sencan		Place of Origin	China
Model Number	HGZ

Delivery Time:20 working days after received your payment
Certification:CE

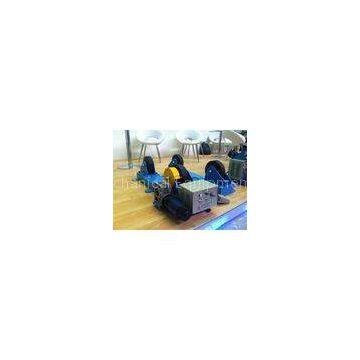

Automatic Pipe Welding Rotators Vessel Welding Turning Roller

1. The swing angle of roller group can be automatically regulated according to the work piece diameter and size and manual calibration is not needed.

2. The active roller stand adopts gear joggle transmission.

3. Steel glue assembly roller, long ton adopts full steel rolling, which has big loading capacity and driven capacity.

4. Imported frequency conversion speed regulator, which features in wide regulation width, big starting power and high adjustable precision.

5. Manual conrol box operation, which can be remote controlled and it is simple and reliable.

Capacity (T)	Roller Diameter (mm)	Roller Width (mm)	Roller speed (m/h)	Adaptation welding Rotator (mm)	Speed control mode
2	180	100	6-60	220-1200	frequency speed control
5	200	130	6-60	250-2200
10	300	150	6-60	320-3500
20	300	200	6-60	450-3500
30	350	250	6-60	500-4500
50	400	300	6-60	500-4500
70	400	300	6-60	600-5000
100	500	300	6-60	700-5500
150	500	300	6-60	800-6000
200	600	300	6-60	800-6000
250	600	320	6-60	800-6000
300	800	320	6-60	1000-6500
350	800	350	6-60	1000-6500
400	800	350	6-60	1000-7000
450	800	350	6-60	1000-7000
550	800	350	6-60	1000-8000

INSTALLATION AND COMMISSIONING-

A young but professional installation team, active all round the world with our machine, like a your friend always at his service.

AFTER SERVICE-

Feedback with your problem or pictures, within 24hour, your will get the answer.
