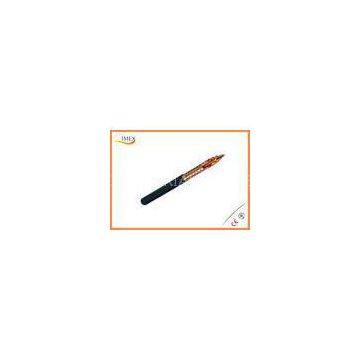

Corrugated Copper Radio Transfer Coaxial Cable 75 Ohm 75-23-3 Low Attenuation
Product Description
Long using period with high performance, excellent electric characteristics , Low attenuation and High power rating, Low VSWR, UV resistance, guarantee fast and easy installation, Fire-retardant, water prevention, etc
Use for telecommunication , 2G/3G/4G/5G/LTE mobile, railway, subway, mineral, wireless base station, inbuilding system, BTS feeder system, Indoor RF distributed antenna system (DAS), transfer raido frequency energy from one point to another, etc.
The special structure of high-degree physical foaming PE insulation and Corrugated copper tube outer conductor presents premises for effective moisture-proofing even without injection of drying-gases, thus assuring performances stability in terms of long period.
Application
1. Computer Network Systems
2. CCTV Monitoring Systems
3. Video and Signal Transmission System
4. Military data links
5. VLF, AM and FM radio broadcast systems
6. Point to point terrestrial microwave
Specifications
ADRF-75-23-3 Air Coax Cable, 75 ohm, Black PE jacket.
Constrcution
| Unit: mm | ||||||
| Inner conductor | Smooth copper tube | 6.1mm | ||||
| Dielectric | PE Strip | 22.0mm | ||||
| Outer conductor | Helix corrugated copper tube | 26.0 mm | ||||
| Jacket | Resistance of heat & light PE, Black | 30.0 mm | ||||
Electrical Characteristics
| Characteristics impedance | 75 ± 2Ω | ||
| Velocity | 94% | ||
| Capacitance | 47 pF/m | ||
| Cut-off frequency | 6.0 GHz | ||
| Peak power rating | 49 kW | ||
| DC-resistance · inner conductor · outer conductor |
1.15 Ω/km |
Packaging & Shipping
Transportation:
1. All available shipping ways could be applied, by courier, air or sea.
2. Appointed shipping company or our own forwarders all could be used in shipment .
3. Full -way tracking the cargos for you before the goods arrive .
Our services
1. We Design, offer outline drawing and sample.
2. We could offer fast delivery As we are real factory.
3. Customer service will follow up the process of order, and prepare the shipping and custom clearance documents, they will follow up the order until you receive it.
4. Quality Guarantee: we could guarantee our quality in one year, if it is not man-made problems,we could repair or replace it for you.
