HS 315W POLY SOLAR PANELS

HS 315W POLY SOLAR PANELS thumbnail-1
HS 315W POLY SOLAR PANELS thumbnail-2
HS 315W POLY SOLAR PANELS thumbnail-3
HS 315W POLY SOLAR PANELS photo-1
HS 315W POLY SOLAR PANELS photo-2
HS 315W POLY SOLAR PANELS photo-3
US$ 129 - 129 MOQ: 30 Pieces
Key Specifications
Get Latest Price
Brand Name:
WINNERS SOLAR
Place of Origin:
China
Model Number:
HS315P156
Contact Supplier Request Quote Chat Now
Luoyang Winners Solar Technology Co.,Ltd
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name WINNERS SOLAR
Place of Origin China
Model Number HS315P156

·Polycrystalline—255W

·Maximum power: 255Wp

·Maximum power voltage: 30.80V

·Maximum power current: 8.28A

·Open circuit voltage: 38.00V

·Short circuit current: 8.92A

·Cell efficiency: 15.58%

·Number of cells: 60 pieces (6 x 10)

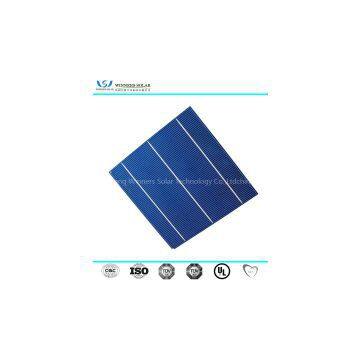

·Size of cell: 156 x 156mm

·Solar panel dimensions:1,640*992*35mm·

Maximum system voltage: 1,000VDC (ICE)

·Operating temperature range: -40 to +85C

·Surface maximum load capacity (surface can withstand the maximum ·pressure) 60m/s (200kg/m²)

·Allowable hail load (hail stress testing) steel ball fall down from 1m height

·Weight per piece: 19.5kg

·Junction box type: BOX-007BN6 TUV

·Connectors and cables type with TUV certificate

·Length of cables: 1000mm

·Output tolerance: ±3%

·Frame (material, corners and more): aluminum

·Standard test conditions (STC): 1,000W/m², 1.5AM, 25C

·Warranty (product quality assurance) 10 years product warranty and 25 years 80% of power

·FF (fill factor): e72%

·Quantity of one 40-foot

 HQ container: 840 pieces

·Quantity of one 40-feet

 High container: 840 pieces
