Cast Iron Right Angle Square

Cast Iron Right Angle Square photo-1

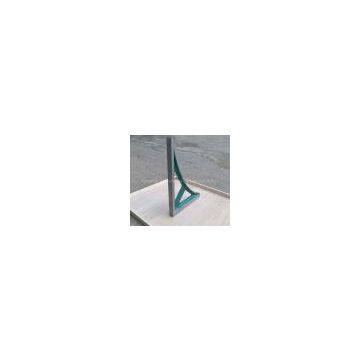

Cast Iron Right Angle Square photo-2
Cast Iron Right Angle Square photo-3
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
ZHONGBO
Place of Origin:
China
Model Number:
RS-6980
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days
Brand Name ZHONGBO
Place of Origin China
Model Number RS-6980

Cast Iron Right Angle Square


Cast Iron Right Angle Square



Cast Iron Right Angle Square are widely used a vertical reference for inspection of components and for checking squareness. Cast iron right angles has bottom and the adjacent square face finished flat and square to each other as well as the two adjacent narrow sides finished flat and square to other two faces and are parallel to each other.



Salient Features:



  • Made from close grained Plain Cast Iron Castings conforming to Grade FG-220 of IS-210,

  • Working surfaces and sides offered with hand-scrapped finish.

  • Two working surfaces provided ( H x B & L x B )

  • Standard size & their accuracies as under

  • Finer accuracies can also be achieved on request at extra cost



Sizes in mm Squareness
H x L x B (Microns)
300 x 200 x 50 3
400 x 250 x 50 4
500 x 300 x 50 5
600 x 400 x 50 6
800 x 500 x 50 8
1000 x 600 x 50 10
