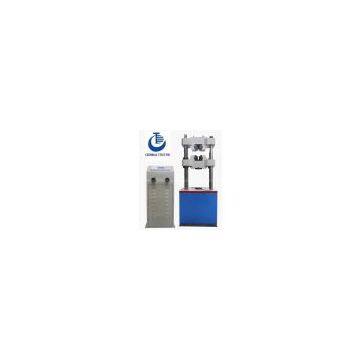

WE-300B Series Digital Display Hydraulic Universal Testing Machine+Lab equipment+test equipment
Main Applications & Functions:
WE-300B hydraulic universal testing machine is adopting oil hydraulic power (as WAW&WEW series) to push the piston in the oil cylinder to provide loading force on specimen. It adopts analog dial dynamometer to display the test result. The loading force display on LCD monitor. The machine have been adopting in many fields like construction area, inspection area, teaching area and so on. . It can test specimen’s tensile compression flexure shear and so on.
Features

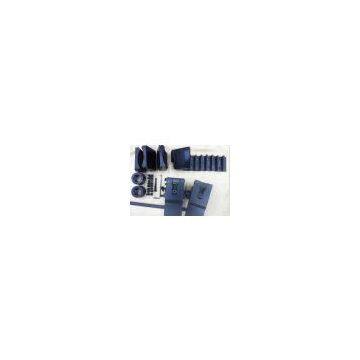

1> The grips: Wedge clamp, firmly hold the specimens. Convertible grip will fit for all kinds of Specimen
2> Crosshead moving: crosshead is directed by reeling screw column. So that reduce vibrates.
3> Compression test: adopt double test-space , achieve tensile test and bending test at same time.
4> Stroke calculate: crosshead displacement is counted by a scale fixed on the column.
5> Oil cylinder: oil cylinder is put on the bottom to reduce unnecessary machine height.
Technical specification:
|
Mode |
WE-300B |
|
|
Max. Load capacity |
300KN |
|
|
Load accuracy |
Within ±1% |
|
|
Test space |
Tensile |
550mm |
|
Compression |
500mm |
|
|
Piston stroke |
200mm |
|
|
Distance between columns |
450mm |
|
|
Tensile fixture |
Round specimen fixture |
Φ10-Φ20mm Φ13-Φ26mm |
|
Flat specimen fixture |
0-15mm |
|
|
The width of flat specimen |
70mm |
|
|
Flat size |
Φ160mm |
|
|
Bending adjust space |
400mm |
|
|
Dimension |
750*600*2100mm |
|
|
Power supply |
Three-phase 380V 50HZ (special requirement can be met) |
