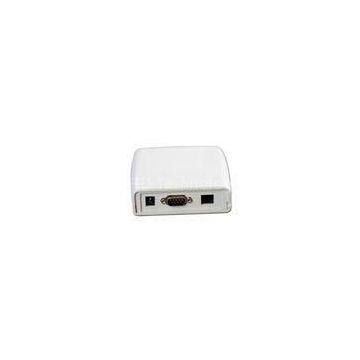

White Rs232 Desktop USB RFID Reader 860 - 960 MHz 123*94*29 mm

White Rs232 Desktop USB RFID Reader 860 - 960 MHz 123*94*29 mm thumbnail-1
White Rs232 Desktop USB RFID Reader 860 - 960 MHz 123*94*29 mm photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
ZKHY
Place of Origin:
China
Model Number:
ZK-RFID106
Contact Supplier Request Quote Chat Now
Shenzhen ZKHY RFID Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name ZKHY
Place of Origin China
Model Number ZK-RFID106
Delivery Time:5-8days
Certification:CE Rohs FCC

rfid card reader rs232 desktop, UHF RFID desktop reader and writer, 860-960MHz

ZK-RFID106 is a high performance Multiple Protocol UHF RFID Reader. It is designed upon fully self-intellectual property. Based on proprietory efficient digital signal processing algorithm, it supports fast tag read/write operation with high identification rate. It can be widely applied in many RFID application systems such as logistics, access control, attendance system, anti-counterfeit and industrial production process control system.

Specification:

Name Parameters
Working Temperature -10~+60℃
Power supply 9V
Storage Temperature -25~+80℃
Working Frequency 902-928Mhz
Support Protocol EPC Gen 2 (ISO18000-6C) ISO18000-6B
Size 123*94*29mm
Net weight 154g
Communication Interface RS232,Wiegand26/34
Antenna Gain 2dBi
Effective Reading distance ˃30cm
Typ Power Dissipation 1.35W
Interface Communication Rate 115200bps can be customized
Buzzer Yes
LED Red(power indicator)Green(status indicator)
Enclosure Plastic

FEATURES

l  Self-intellectual property;

l  Support ISO18000-6C (EPC C1G2),ISO18000-6B protocol tag;

l  902~928MHz frequency band(frequency customization optional);

l  FHSS or Fix Frequency transmission;

l  RF output power up to 30dbm(adjustable);

l  Built-in wideband antenna with effect distance up to 500mm*;

l  Support auto-running and interactive work mode;

l  Low power dissipation with single +9V DC power supply;

l  SupportRS232 and Wiegand interface;

l  Output format and parameters configurable;

l  Provide SDK and demo software to facilitate further development.

INTERFACE

DB9 Male
Pin Symbol Comment
1 NC Reserved
2 TXD TXD of RS232
3 RXD RXD of RS232
4 NC Reserved
5 GND GND
6 WD0 Wiegand data0
7 NC Reserved
8 WD1 Wiegand data1
9 GND GND

CHARACTERISTICS

l Absolute Maximum Rating

ITEM SYMBOL VALUE UNIT
Power Supply VCC 15 V
Operating Temp. TOPR -10~+60 ℃
Storage Temp. TSTR -25~+80 ℃

l Electrical and Mechanical Specification

Under TA＝25℃,VCC＝+9V unless specified

ITEM SYMBOL MIN TYP MAX UNIT
Power Supply VCC 6 9 12 V
Current Dissipation IC   400 700 mA
Frequency FREQ 902   928 MHz
Effective Distance* Dis 0 100 500 mm

* Effective distance depends on protocol, tag and environment.

Application :

ZK-RFID 101 is high perfomance UHF desktopreader.It can wide use in Jewelry store management ,access control system.It can easily white the card .

Warehouse management:

Jewelry store management:
