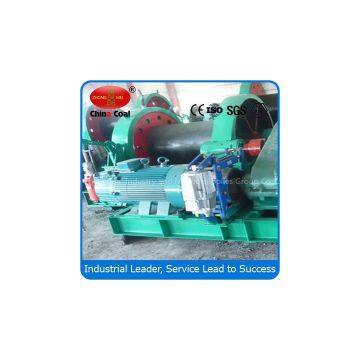

Electric Mine Shaft Sinking Wire Winder Slow Lifting Speed Winch

JZ series sinking winches are used in coal mine, metal mine, non-metallic mine for hanging the swaying tray, water pump, air compressor, grouting tube, wind-cone and other excavation facilities, also can use for hanging heavy loads on surface and underground.

The features:

1.set one/two  hydraulic thrust Failsafe brake and one hydraulic disk  drum brake,

pact in structure, easy to operation, safe and reliable. frequency conversion  and joystick controller for speed control.

3. emergency stop, power failure safety brake, over winding protection

Main Parameter

Model JZ-5/400 JZA-5/600 JZ-10/800/1000 JZ-16/800 JZ-16/1000/1300 JZ-25/1300/1500

Maximum Static Tension of Rope 5000KG 5000KG 10000KG 16000KG 16000KG 25000KG

Rope Capacity 400M 600M 800/1000M 800M 800/1300M 1300/1500M

Mean Speed of Rope High Speed 6M/MIN 6M/MIN 6M/MIN 6M/MIN 6M/MIN 6M/MIN

Low Speed 3M/MIN 3M/MIN 3M/MIN 3M/MIN 3M/MIN 3M/MIN

Twisting Layers 6 Layers 10 Layers 7 Layers 6 Layers 7 Layers 9 Layers

Rope Diameter 23MM 23MM 31MM 40MM 40MM 52MM

Winding Drum Diameter 400MM 400MM 800MM 1000MM 1000MM 1050MM

Width 900MM 1000MM 1050MM 1400MM 1400MM 1560MM

Center Height 650MM 580MM 800MM 1050MM 1050MM 1250MM

Speed Ratio Reducer High Speed 50 50 63.5 77 77 77

Low Speed 100 100 127 154 154 154
