3D Vision Measuring Machine YVM-VT Series

Dongguan YuanXing Optics Instruments Co.,Ltd
3D Vision Measuring Machine YVM-VT Series thumbnail-1
3D Vision Measuring Machine YVM-VT Series thumbnail-2
3D Vision Measuring Machine YVM-VT Series photo-1

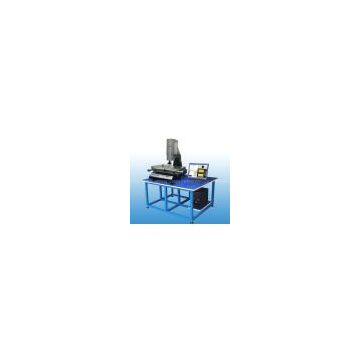

3D Vision Measuring Machine YVM-VT Series photo-2
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
yanuxnig
Place of Origin:
China
Model Number:
YVM-2010VT;YVM-3020VT;YVM-4030VT;YVM-5040VT
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name yanuxnig
Place of Origin China
Model Number YVM-2010VT;YVM-3020VT;YVM-4030VT;YVM-5040VT
Introduction:
This machine is suitable for all 2D measurements. It is widely used in the industries of machinery, electronics, watch, plastic, module etc. Its functional YR-YCSPC measuring software can realize the functions of all 2D flatness measurements, making map, profile scanning, special SPC statistics, manual CNC, Macroscopic measurement and so on. Z axis lifting system adopts granite column, which makes Z axis non-contact precise measurement and flatness measurement available.

Specification:

Item     Model

YVM-2010VT

YVM-3020VT

YVM-4030VT

YVM-5040VT

X.Y.Z axis Travel (mm)

200*100*220

300*200*220

400*300*220

500*400*220

X.Y.Z Resolution

0.001mm

A X.Y Axis ccuracy

 X.Y Axis :(3+L/200)um

Repeatability

3um

Total Magnification

24X~156X (12X~312X is available)

Measuring mode

Video type

CCD

430,000 Pixels high definition Sony Chip CCD

Objectives

High definition 0.7~4.5X zoom lens

Working distance

115mm (video)

Computer (Option)

 Brand computer

Measuring Software

YR-YCSPC measuring software ( it can realize Z axis  accuracy and flatness measurement )

Lifting Column

Stable granite column

Instrument Base

000 grade stable granite base

Illumination

Surface and contour illumination both use brightness adjustable LED shadowless lamp

Dimension (L*W*H) (mm)

500*550*950

700*650*950

980*750*950

1050*800*950

Machine Weight (Kgs)

175

180

300

500
