Economic Cantilever Type CNC Automatic Image Analyzer

Dongguan YuanXing Optics Instruments Co.,Ltd
Economic Cantilever Type CNC Automatic Image Analyzer thumbnail-1
Economic Cantilever Type CNC Automatic Image Analyzer thumbnail-2
Economic Cantilever Type CNC Automatic Image Analyzer thumbnail-3
Economic Cantilever Type CNC Automatic Image Analyzer photo-1

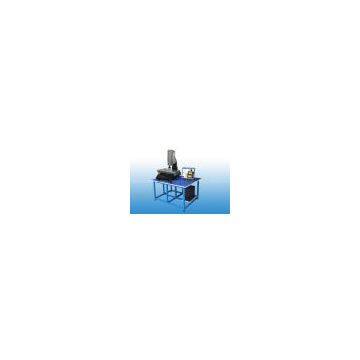

Economic Cantilever Type CNC Automatic Image Analyzer photo-2

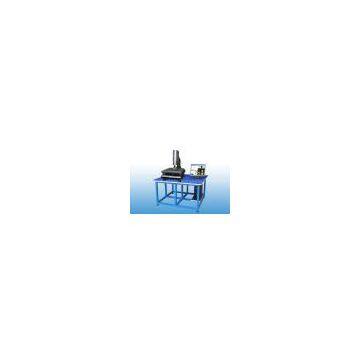

Economic Cantilever Type CNC Automatic Image Analyzer photo-3
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
yanuxnig
Place of Origin:
China
Model Number:
YVM-3020LCNC;YVM-4030LCNC;YVM-5040LCNC
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name yanuxnig
Place of Origin China
Model Number YVM-3020LCNC;YVM-4030LCNC;YVM-5040LCNC
Instrument use
The instrument was applied to two-dimensional measurement for all applications. Widely used in machinery, electronics, watches and clocks,plastic,mold industry.
Features:
YR-CNC measuring software, powerful, can realize alltwo-dimensional measurement functions, also has patted map, contour scanning professional SPC products statistics, manual CNC, macro measurement functions.The Z shaft lifting the marble columns, Z can realize the non-contact precision measurement and faltness measurement.

Specificaton:

Instrument Model

YVM-3020LCNC

YVM-4030LCNC

YVM-5040LCNC

Travel Range

300*200*220mm(X.Y.Z)

400*300*220mm(X.Y.Z)

500*400*220mm(X.Y.Z)

 X.Y Axis Resolution

0.001mm

Stepper motor

Domestic stepper motor

Measurement software

YR-CNC(Z axis and accurate measurement of flatness measurement )

Lens

USA"Navitar"0.7-4.5 automatic zoom lens

Computer

Brand computer

CCD

The SONY chip is 430000 pixels high definition color CCD

Magnification

24~156X ( 12~312X is avaliable)

Surface Light

8 zone program source

Contour Light

Electrodeless adjustable LED light source

Accuracy

 X.Y  Axis:(3+L/75)μm

Repeatability

5μm

Drive way

Taiwan TBI ball screw+domestic cross ball guide rail

Operation

Program control+Rocker

Working weight limit

35KG

 Appearance size

840*970*1300mm

1000*1200*1300mm

1100*1250*1300mm

instrument weight

 330KG

450KG

560KG

Optional parts

The " RENISHAW " MCP probe, the United States of America " NAVITAR " automatic zoom lens
