Wood Chipper With 22hp Diesel Engine CE Approved

Wood Chipper With 22hp Diesel Engine CE Approved photo-1
Wood Chipper With 22hp Diesel Engine CE Approved photo-2
Wood Chipper With 22hp Diesel Engine CE Approved photo-3
Wood Chipper With 22hp Diesel Engine CE Approved photo-4
US$ 2500 - 3800 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
China
Model Number:
DWC22
Certification:
CE/EPA
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
30 days
Place of Origin China
Model Number DWC22
Certification CE/EPA
Type Wood Chipper
Warranty 1 year
Power Type Diesel
Condition New

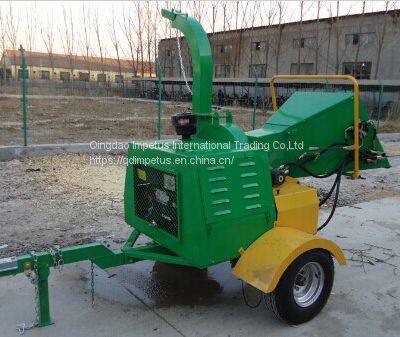

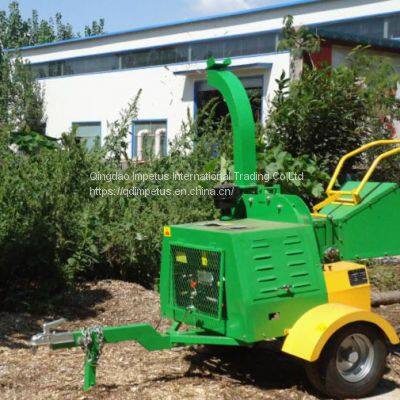

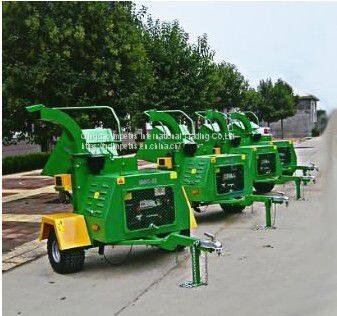

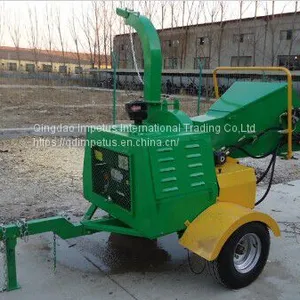

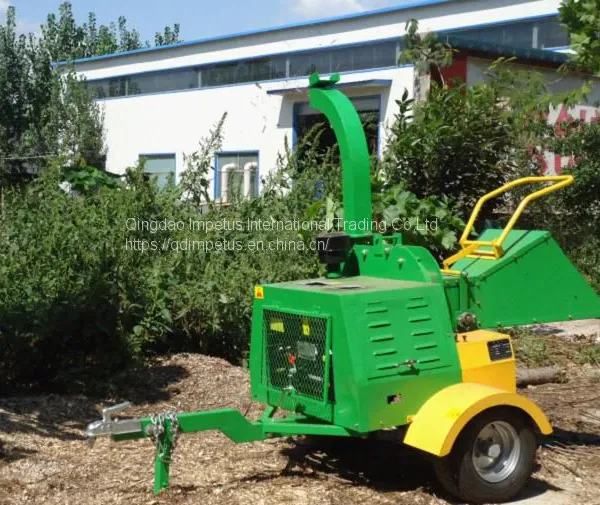

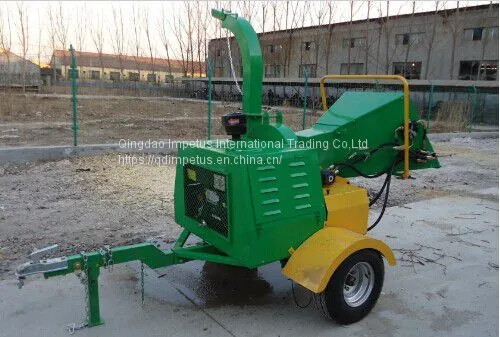

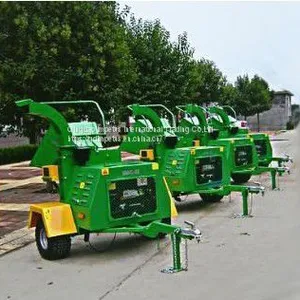

Trailer Mounted Wood chipper , with self feeding system,3Bladed,

8Diameter Capacity, powered by 22hp,one cylinders Electric Start diesel engine,

Euipped with turning lights,easy discharge hood,2Ball Hitch&Safety Chains and leaf spring on the axle.

Reversible stationary and rotor knives double time between sharpenings.

Discharge hood rotates 360 degress.

 Engine:22hp Changchai Diesel engine
Chipper capacity 8"diameter/ 200mm
Feeding system Roller feeding
Rotor plate size 640mm
Rotor plate weight 85kg
Knives number 1 stationary knife; 2rotary knives
Dimensions(Hopper discharge)(mm):1300L x 1400W x 1100H
Electric motor 60An, 12V
wheels 20.5-8 x 10
Overall size 3.1x1.75x1.8m
Weight 605kgs(N.W) 650kgs(G.W)
Working efficiency 10-12 CBM/H

Product Tags: wood chipper , chipper , log splitter
