Help CenterSell Rf-module
US$ 24 - 24
MOQ: 50 Pieces
Key Specifications
Get Latest Price
Brand Name:
Place of Origin:
China
Model Number:
HAC-U_Net
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days
Related Products
Place of Origin
China
Model Number
HAC-U_Net

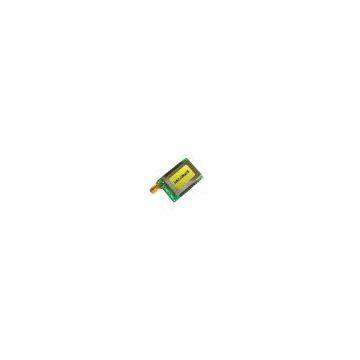

Ⅰ.Features of HAC-UNet
HAC-UNet is an ultra low power data radio module which ased on wireless self-organized technology VBee protocol. Its features are as follow:
1.Standard transmitting power is 100mW (20dBm), it can be customized as 50mW(17dBm). The working frequency is from 470MHz to 475MHz.
2.High anti-interference and Low BER (Bit error Rate)
Based on the GFSK modulation, the high-efficiency forward error correction channel encoding technology is used to enhance data’s resistance to both transient interference and random interference. The 16 CRC verify bits can be used to check mistake.
3. The transmitting speed in the air is fixed on 9600bps. The reliable transmitting distance is 1500m within the visible range.
4.HAC-UNet offers 8 channels.
5. HAC-UNet offers a UART interface of TTL ***** standard RS232/RS485 port can be optional. The baud rate and parity can be setup .
6. Low power consumption (100mW), the receiving current is no more than 50mA, and the transmitting current is no more than 100mA.
7. Small size and light weight
8. By using monolithic SoC radio-frequency integrated circuit and single-chip MCU, the transceiver needs less peripheral ircuit s, and it is higher reliability and lower failure rate.
II. Applications of HAC-UNet
HAC-UNet ultra low power data radio module is suitable for:
﹡Home appliances intelligent control.
﹡Auto Meter Reading system.
﹡Industry telemetry and automatic data collection system.
﹡Security and alarm.
﹡Wireless monitor for hotel and machine room, access control system, personnel orientation.
﹡Traffic and the control for street lamp.
﹡Logistics, active RFID, POS system and wireless handheld terminal.
HAC-UNet is an ultra low power data radio module which ased on wireless self-organized technology VBee protocol. Its features are as follow:
1.Standard transmitting power is 100mW (20dBm), it can be customized as 50mW(17dBm). The working frequency is from 470MHz to 475MHz.
2.High anti-interference and Low BER (Bit error Rate)
Based on the GFSK modulation, the high-efficiency forward error correction channel encoding technology is used to enhance data’s resistance to both transient interference and random interference. The 16 CRC verify bits can be used to check mistake.
3. The transmitting speed in the air is fixed on 9600bps. The reliable transmitting distance is 1500m within the visible range.
4.HAC-UNet offers 8 channels.
5. HAC-UNet offers a UART interface of TTL ***** standard RS232/RS485 port can be optional. The baud rate and parity can be setup .
6. Low power consumption (100mW), the receiving current is no more than 50mA, and the transmitting current is no more than 100mA.
7. Small size and light weight
8. By using monolithic SoC radio-frequency integrated circuit and single-chip MCU, the transceiver needs less peripheral ircuit s, and it is higher reliability and lower failure rate.
II. Applications of HAC-UNet
HAC-UNet ultra low power data radio module is suitable for:
﹡Home appliances intelligent control.
﹡Auto Meter Reading system.
﹡Industry telemetry and automatic data collection system.
﹡Security and alarm.
﹡Wireless monitor for hotel and machine room, access control system, personnel orientation.
﹡Traffic and the control for street lamp.
﹡Logistics, active RFID, POS system and wireless handheld terminal.
