3G-HD-SDI With SNMP Fiber Optic Converter,3G-SDI With Audio,Ethernet,data,SNMP Function,Switch Telephone

3G-HD-SDI With SNMP Fiber Optic Converter,3G-SDI With Audio,Ethernet,data,SNMP Function,Switch Telephone thumbnail-1
3G-HD-SDI With SNMP Fiber Optic Converter,3G-SDI With Audio,Ethernet,data,SNMP Function,Switch Telephone thumbnail-2
3G-HD-SDI With SNMP Fiber Optic Converter,3G-SDI With Audio,Ethernet,data,SNMP Function,Switch Telephone thumbnail-3
3G-HD-SDI With SNMP Fiber Optic Converter,3G-SDI With Audio,Ethernet,data,SNMP Function,Switch Telephone photo-1
3G-HD-SDI With SNMP Fiber Optic Converter,3G-SDI With Audio,Ethernet,data,SNMP Function,Switch Telephone photo-2
3G-HD-SDI With SNMP Fiber Optic Converter,3G-SDI With Audio,Ethernet,data,SNMP Function,Switch Telephone photo-3
US$ 925 - 925 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
beyond
Place of Origin:
China
Model Number:
by-sdi-SNMP
Contact Supplier Request Quote Chat Now
Shenzhen Beyond Photoelectric Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name beyond
Place of Origin China
Model Number by-sdi-SNMP

HD-SDI optical transceiver with network management function

FEATURES

·Handles pathological pattern

·Automatic cable equalization to ensure signal integrity

·Automatic reclocking  270Mbit/s -1.48Gbit/s - 3Gbit/s

· Support signaltype: 270Mbit/s to 3Gbit/s according to SMPTE 424M, SMPTE 292M and SMPTE 259Mstandards

·Directlycompatible with HD-SDI camera systems and support RS-232, RS-422, and RS-485data protocols

·Long transmission capability at least 10 km(6.2 miles) , up to 80 km

·Terminal block power input for industrial application

·Supportshot swapping and hot plugging

·Industry-gradeof operating temperature from -10℃to 75℃, which is applied to the different working environment

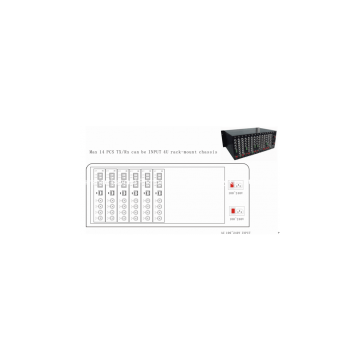

·Stand-alonetype or card-type installed in 19’’ 4U rack-mount chassis.

DESCRIPTION

The SDI series fiber videoconverter is an ideal and economic solution for broadcasting or surveillance applications.It receives one SDI electrical input, perfectly converts electrical SDI signalto single mode optic SDI signal. It supports transmission image of SDTV(143-540Mbps), HDTV (1.485Gbps) and HDTV (3Gbps, 1080p60).

Both transmitter and receiverprovide equalizing and reclocking at input unit in order to re-construct thesignal for consistent quality. Besides, with BeyondOpto advanced fibertechnology, The convertercaneasily pass pathological pattern to prove its complete transmission.

The SDI series fiber video converter are typically used inapplications where the cameras have P/T/Z capabilities. Plug and Play designensures the ease of installation and operation. Electronic and opticaladjustments are never required. LED indicators are provided for instantlymonitoring system status. Devices are available for either standalone orrack-mount installation ,which is suitable for different working environment .




  2. SPECIFICATION

  3. Opitcal：

  4. Wavelength 1310nm&1470nm~1610nm

  5. Output Power -8~-3dBm /  -3~+2dBm

  6. Optic fiber 50/125u multimode，62.5/125u multimode，9/125u single mode

  7. Rx sensitivity -18dBm

  8. Optical connector LC、SC、FC、ST (optional)

  9. Distance 0~350M (MM)  /  0~80KM  (SM)


  11. Remote：

  12. Data protocol RS232、RS422、RS485

  13. Data rate 0~500 Kbps

  14. Error rate < 10-9

  15. Connector Standard terminal lead


  17. Video:

  18. SDI Input

  19. Signal Type SDI SMPTE 424M, SMPTE 292M, SMPTE 259M

  20. Data Rates 270Mbit/s - 1.48Gbit/s - 3Gbit/s

  21. Cable Equalization Automatic cable EQ (Belden 1694A cable)

  22. 250m @ 270Mbit/s, 140m @ 1.5Gbit/s, 80m @ 3Gbit/s

  23. Connector BNC 75 Ohm

  24. General：

  25. Input Power 5 V or 12V DC

  26. Operating temperature 0°C to 55°C

  27. Storage temperature -10°C to 70°C

  28. Operating humidity 0 ~ 95% (non-condensing)

  29. Case material Aluminum


  31. Ethernet：

  32. Work mode Full duplex/half duplex

  33. Data Rate 10/100Mbps(AUTO)

  34. connection terminal RJ45

  35. Control SNMP


  37. SNMP DETAIL:

  38. SFP1

  39. SFP Mount Status SFP RX1 Temperature

  40. Dual Receiver Video SFP SFP RX1 Power

  41. Connector SFP RX1 Voltage

  42. Fiber Length(9um*km)

  43. Vendor name

  44. Vendor part number

  45. Wavelenght

  46. Vendor serial number

  47. Vendor date code

  48. SFP2

  49. SFP Mount Status SFP RX2 Temperature

  50. Dual Receiver Video SFP SFP RX2 Power

  51. Connector SFP RX2 Voltage

  52. Fiber Length(9um*km)

  53. Vendor name

  54. Vendor part number

  55. Wavelenght

  56. Vendor serial number

  57. Vendor date code

  58. SFP3

  59. SFP Mount Status SFP RX3 Temperature

  60. Dual Receiver Video SFP SFP RX3 Power

  61. Connector SFP RX3 Voltage

  62. Fiber Length(9um*km)

  63. Vendor name

  64. Vendor part number

  65. Wavelenght

  66. Vendor serial number

  67. Vendor date code

  68. SFP4

  69. SFP Mount Status SFP RX4 Temperature

  70. Dual Receiver Video SFP SFP RX4 Power

  71. Connector SFP RX4 Voltage

  72. Fiber Length(9um*km)

  73. Vendor name

  74. Vendor part number

  75. Wavelenght

  76. Vendor serial number

  77. Vendor date code

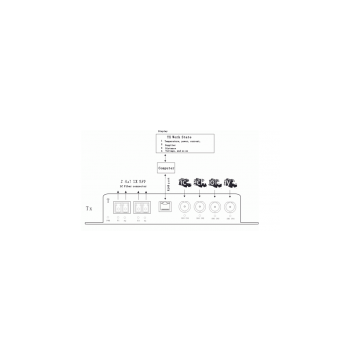

  104. APPLICATION
