Foxboro : IGP10/IGP20 , gauge pressure transmitter, Foxboro pressure transmitter

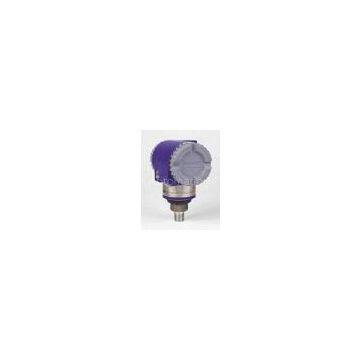

IGP10/IGP20 Series Intelligent Pressure Transmitter
This intelligent two -wire pressure transducer is suitable for measuring the gauge pressure, with 4-20mA or digital output signal.
Installation type
·IGP10: compact construction, light weight, suitable for process connection directly( matching installation bracket).
·IGP20: its bracket installation type is suitable for lower measuring limit with kinds of material.
Durable and Reliable
·Adopts polysilicon tested in the field bus application
·Adopts corrosive-proof epoxide resin coating.
Good performance
· Accuracy: ±0.050% of range(digital output)
· When the ambient temperature changes every 55°C(100°F), it affects ± 0.02% of the high limit of the total measuring range.
Different electronic module chosen
·FOXBORO and HART digit/4 -20mA intelligent type
·4~20mA economic type
LCD display/key configuration
·Digit/4-20mA type can be chosen,4-20mA type is choosen.
· Can set zero/range/unit.
Intelligent direct connection gauge pressure transmitter: IGP10
Electronic Module Type and Output signal
Intelligent type: Digital FoxCom and /or 4-20mA dc output, can be configuration selection (-D type)
Intelligent type: digital HART and 4-20mA output (-T type)
Intelligent type: FF field bus (-F type)/ Profibus (-P type)
4-20mA analog output, explosion –proof (-A type, with LCD screen display and configuration key
Construction Code(limited selected transmitter cannot match the pressure sylphon)
Range
·C = 0.007 & 0.21MPa, 1 & 30 psi, 0.07 & 2.1 bar or kg/cm2
·D = 0.07 & 2.1MPa, 10 & 300 psi, 0.7 & 21 bar or kg/cm2
·E = 0.7 & 21MPa, 100 & 3000 psi, 7 & 210 bar or kg/cm2
·F = 14 & 42MPa, 2000 & 6000 psi, 140 & 420 bar or kg/cm2
·G = 35 & 105MPa, 5000 & 15000 psi, 350 & 1050 bar or kg/cm2
·H = 70 & 210MPa, 10000 & 30000 psi, 700 & 2100 bar or kg/cm2
Wire Conduit connector
1/2NPT wire conduit connector, two sides, aluminum case
·PG13.5 wire conduit connector, two sides, aluminum case
·1/2NPT wire conduit connector, two sides, 316ss case
·PG13.5 wire conduit connector, two sides, 316ss case
Electric Safety( Please see safety rules instruction)
·CSA verification
·FM verification
.SAA verification, EEX, d, IIC
.SAA verification, EEX, ia, IIC
.SAA verification, n, IIC
One installation bracket component refers to one code
.Paint steel bracket matching plating steel bolt,1/2 NPT
·Stainless steel bracket matching stainless steel bolt, 1/2 NPT
Digital display with key
.Digital Display, the key and display window cover( not suitable for –A electronic module)
Other Option
· Pressure process gland : F-250-C
Oil removal( just used for the transmitter with silicon oil and not used for the liquid , which can react with silicon oil, such as Oxygen/chlorine)
Suitable for oxygen working clean deal—just suitable for the sensor with filling Fluorinert
·Suitable for chlorine working clean deal—just suitable for the sensor with filling Fluorinert
