Help CenterHigh-Pressure Adsorption of Methane and Ethane in Activated Carbon and Carbon Fibers
Related Products
-
Adsorption in Porous Meterials at High PressureUS$ 1 - 1MOQ: 1 Piece -
High Pressure Adsorption Equilibria of Methane and Carbon DioxideUS$ 1 - 1MOQ: 1 Piece
-
High Pressure Volumetric AnalyzerUS$ 2200 - 2200MOQ: 1 Piece
-
High Pressure Gas Sorption AnalyzerUS$ 59999 - 59999MOQ: 1 Piece
-
High Pressure Gas Adsorption Analyser by Volumetric PrincipleUS$ 59800 - 59800MOQ: 1 Piece

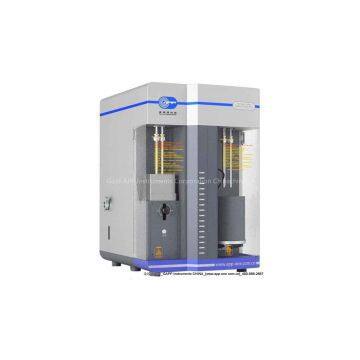

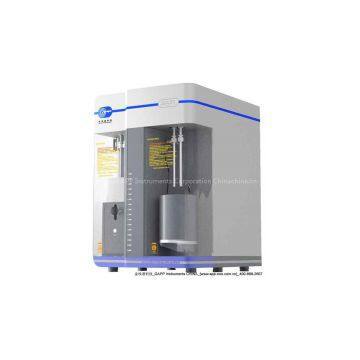

H-Sorb 2600 high pressure gas adsorption volumetric principle analyzer parameters
Analysis Method: static volumetric principle, high pressure gas sorption principle
Versatility: adsorption/desorption isotherms measurement (atmospheric to 500℃), Gibbs supercritical adsorption measurement
Data Reduction: Langmuir model regression isotherm, PCT(Pressure-Composition-Temperature) or PCI (Pressure-Composition-Isotherm) diagram/curve/isotherm measurement, Langmuir maximum adsorption constant L and adsorption pressure constant B measurement; Langmuir correction model loading-ratio correlation regression (LCR) isotherm; Ono-Kondo (OK) lattice model isotherm regression; adsorptive gas density and vapor-liquid equilibrium accuracy calculation under different pressures and temperatures
Measuring Ranges: continuous adsorption and desorption measurement from atmospheric to 200Bar pressure
Accuracy: repeatability errors <3%
Temperature Range: cryogenic to 500℃, accuracy±0.1℃
Sample Ports: two samples analyzing and two degassing, stainless-steel micro welding sample cells, software integrated temperature PID adjustment
Transducer Accuracy: imported high precision transmitter, accuracy can reach 0.05% of F.S. (full-scale), long-duration usage stability is 0.025% of F.S.
Ultimate Vacuum: 4x10-2 Pa (3x10-4 Torr), molecular pump system (1x10-6 Pa) is optional
Adsorbate Gas: high purity nitrogen, CO2 or others (Ar, Kr, H2, CH4 etc.)
Our policy of continuous development may cause the information and specifications contained herein to change without notice or liability.
