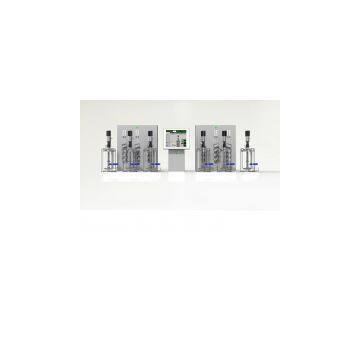

Help CenterBench Top Fermenter : FMT ST Series
Related Products
Credibility and precise control are important for the lab scale fermenter.
The FMT ST series control system, a touch screen computer loaded with HMI, can easily and accurately control diverse variables. This system, which is a standard-type fermenter for experiments, was produced in a way that enables data to be easily input-output and processed.
< Features >
* Structured in a single shell vessel, with a cartridge heater & cooler applied
* 8.4” touch screen computer with HMI allows for easy operation
* PLC adopted as a main control system
* Loaded with an interlocking control program to enable the cultivation of various conditions DO interlocking function
- Agitation Speed FEED interlocking function - dissolved oxygen, supply time PH interlocking function - feed rate, dissolved oxygen
* A controller whose reliability can be guaranteed has been adopted.
* Cylinder borosilicate vessel (Pyrex glass)
* Agitation system: mechanical seal used
* Various nozzles made with precisely processed STS 316 and parts guarantee the highest level of confidence.
* Elegant design considered for easy repair and cleaning
< Vessel Type >
< Impeller >
< Specification >
* Autoclavable single shell borosilicate glass vessel
* 1 ~ 10 L total volume
* Electro polished STS316L head plate & bottom plate
*Nozzles
- Inoculum port : Flaming
(option: Septum nozzle or aseptic inoculation valve)
- Temperature, pH, DO, foam sensor
(option : ORP, level, OD sensor)
- Exhaust & condenser
- Agitation
- 4 media feeds
- Sampling & harvest (option: aseptic transfer valve)
* Agitation
- Single mechanical seal
- High torque 60 W BLDC motor (30 ~ 1,200 rpm)
- 3 baffles or more
* Aeration
- Ring sparger (option : 1 ~ 10 micrometer micro sparger)
- 0.2 micrometer disposable hydrophobic filter with check valve
* Removable addition bottles support
- Peristaltic pump with tubings
* Impeller
- Rushton type/Pitched blade/Marine blade
* Gas flow
- 2 gas control rotameters
(option : 4 rotameters or 1 ~ 4 mass flow controller)
- Flow rate
0.5 ~ 5 L/min
1 ~ 10 L/min
< Contorl >
* 8.4”(FMT ST-S, FMT ST-D) or 17”(FMT ST-M) touch screen computer
* 1 to 12 vessels intelligent control
* 16 control loop per vessel
* Temperature control : heating/cooling
* pH control : acid/base agent feeding control Automatic Calibration
* Agitation control : 30 ~ 1,200 rpm
* DO control : PID cascade control with agitation, feeding and gas flow rate Automatic Calibration
* Feed control : fed-batch control by time, DO, pH
* 4 pump control : acid, base, anti-foam, feeding easily calibrated pump
* Flow control (option) : 1 ~ 4 mass flow control
* 8 multi trend log data per vessel
* Easily calibrated sensors
