Energy Saving Micro Car Air Purifier Improves Sense Of Well-Being OZ100

Energy Saving Micro Car Air Purifier Improves Sense Of Well-Being OZ100 thumbnail-1
Energy Saving Micro Car Air Purifier Improves Sense Of Well-Being OZ100 photo-1
US$ 4 - 5 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
NFCase
Place of Origin:
China
Model Number:
AIA-1
Contact Supplier Request Quote Chat Now
Componex  Electronic V Mfg  Co.,Ltd
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name NFCase
Place of Origin China
Model Number AIA-1
Delivery Time:3-5 days
Certification:CE,FCC,MSDS

Energy Saving Micro Car Air Purifier Improves Sense Of Well-Being OZ100

Specification:

Voltage

12V D.C-13.6V D.C

Current

<100mA

Ozone output

<0.05ppm over 8 hours

Car cord plug

fuse protected

Dimension

63x25x19mm

Specification details:

Smallest in the market

Low power consumption 12VDC (60mA)

Low temperature rise

Ozone output within international safety limit

Size: 63*25*19mm

Benefits:

Sterilization: Can quickly kill all bacteria, viruses, but without secondary pollution.

Detoxication: effective remove of pesticide residues from food.

Remove odor: musty, smoke, smoke flavor, water stains etc.
Improve oxygen: improve oxygen for water or air.
Healthy: air purify, expedite human metabolism.


Introduction:

The OZ-100 is designed to be small in size, robust, and complement the style and design of car interiors. High voltage sine waves generate sparks in the neon, inducing a high voltage field between the neon glass surface and a stainless steel coil, thus converting surrounding oxygen into ozone.

Ozone is a very powerful oxidizing gas which oxidizes long chain molecules that can be smelt by the nose. When oxidized, these long chain molecules break down into shorter molecules that cannot be smelt, thus removing the odor from the air.

Ozone generated by this method is considered to be relatively pure. The amount generated is small and within the international safety standard guidelines of 0.08 ppm over 8 hours.

The package:

There are 3 items in the gift box

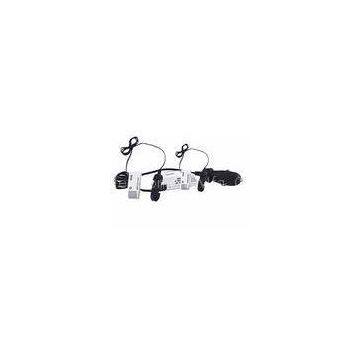

The OZ 100 unit, with a car power cord attached

A 3-legged mounting bracket

Instruction manual

Important:


Users must caution that many big vans and trucks use 24 VD.C batteries. The OZ100 unit will be damaged if used at this high voltage.


Please beware that ozone is 1.7 times heavier than air and is a very powerful oxidation gas. Thus make sure that there are no metal objects near the ozone exit slots on the unit.


If used hanging, the ozone slots must face downward in order for the ozone generated to fall out of the unit and so that the components on the circuit board will not be oxidized.


Avoid very high temperature environments (>60 degrees Celsius)


Avoid very human environments (>95% RH)


Make sure there is adequate air circulation from the air vent in order for the ozone to mix with the air for optimal results


If the user wants to use a power adaptor purchased outside, make sure that the adapter can only provide 12VD.C at 100 mA. Any higher rated adapter must not be used, especially if it is an unregulated adapter.
