Help CenterGeogrid for Mining
US$ 0.2 - 4
MOQ: 5000 Square Meters
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
TEX
Model Number:
PGM
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Shanghai, China
Brand Name
TEX
Model Number
PGM
Material
Polyester
Product Description
Introduction

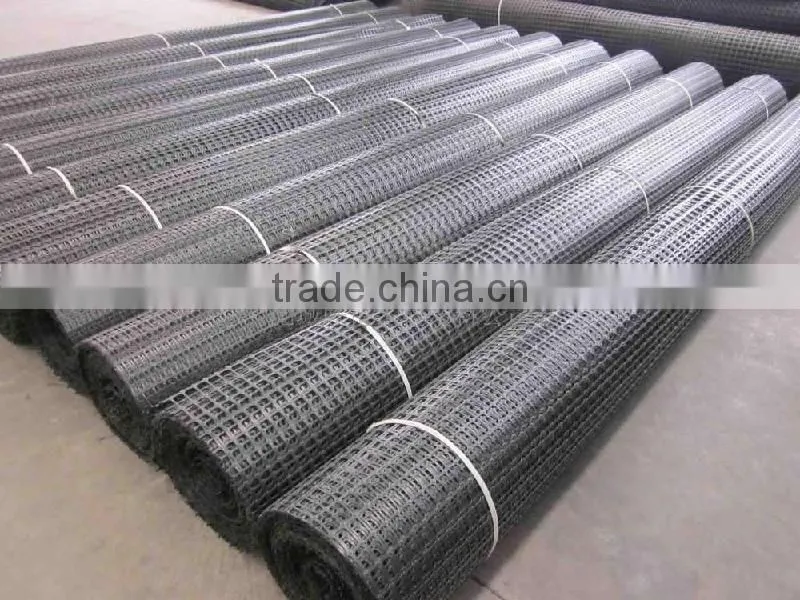

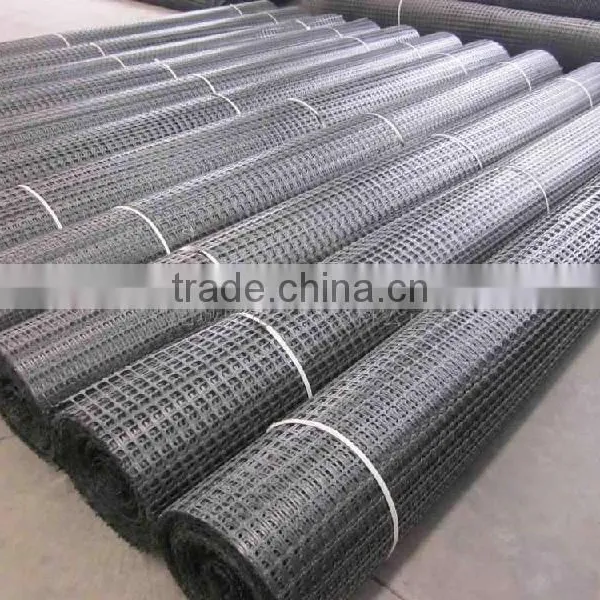

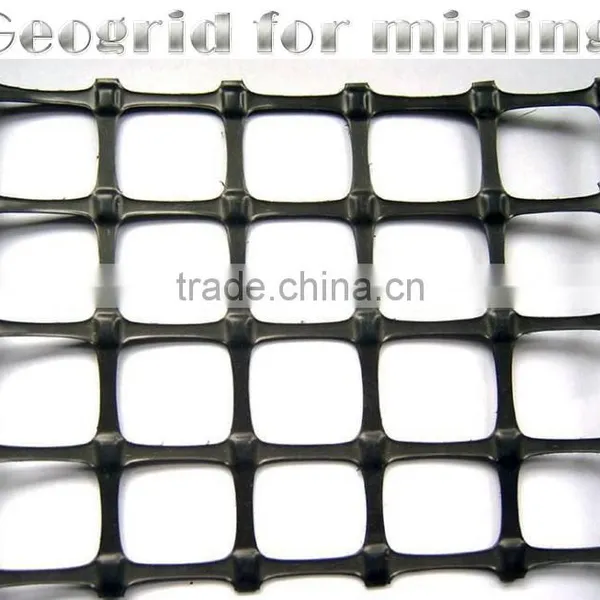

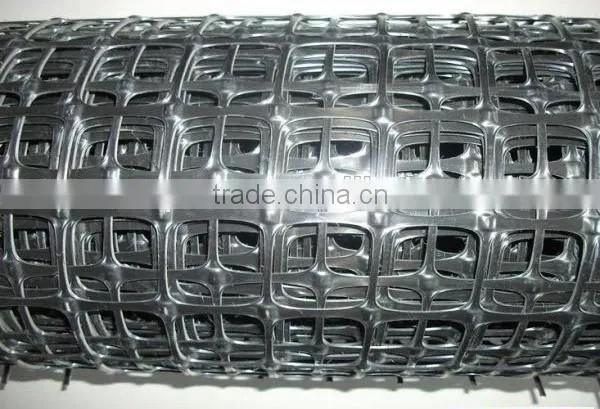

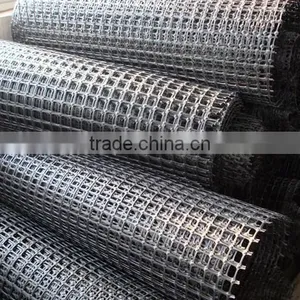

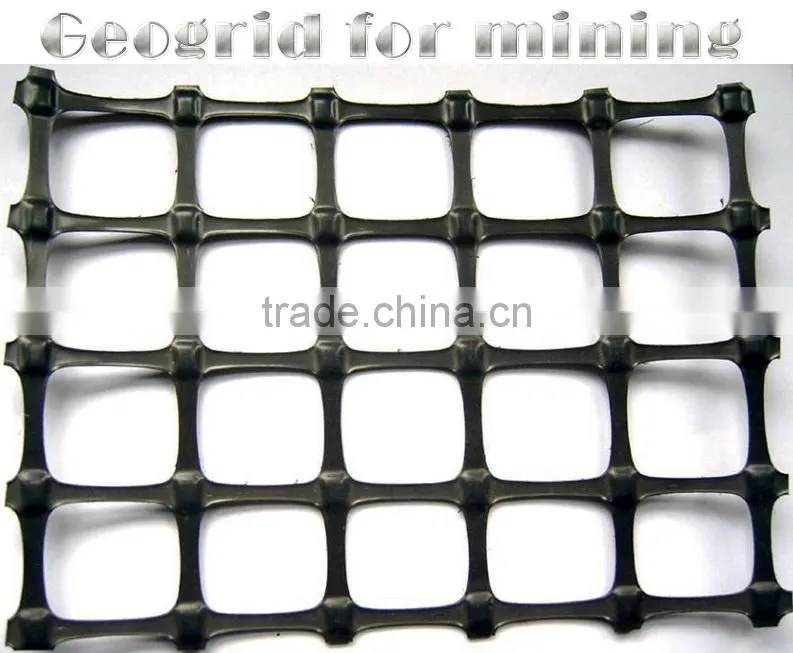

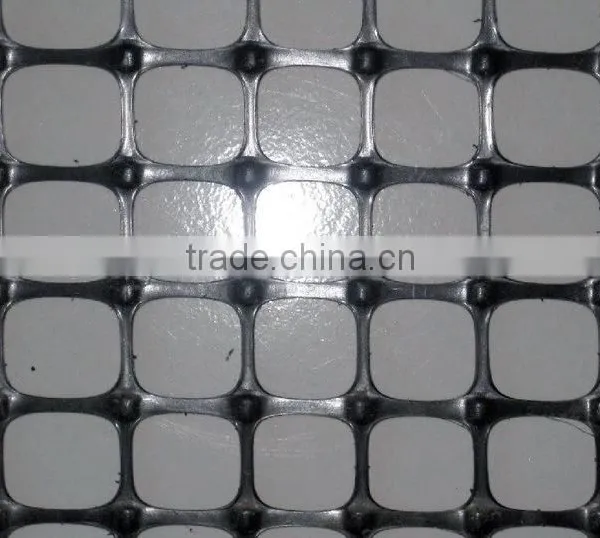

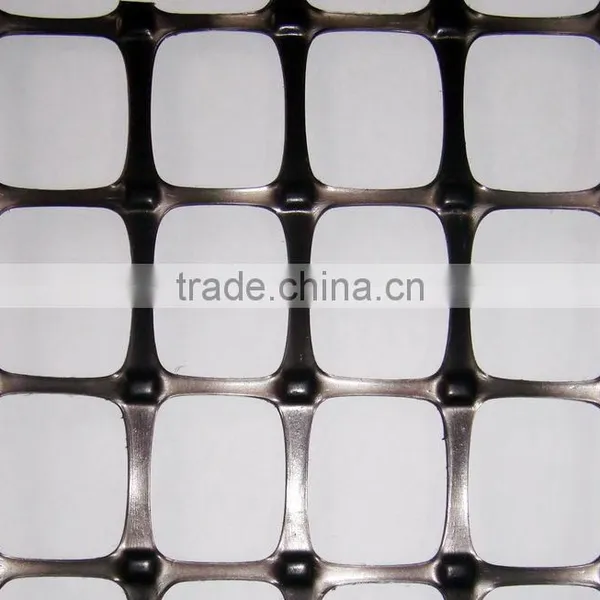

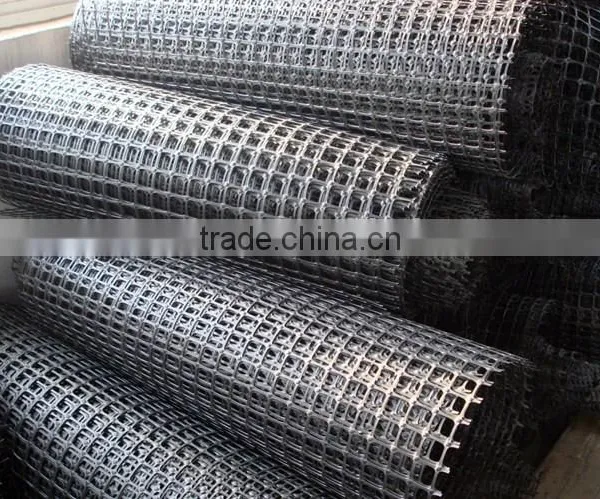

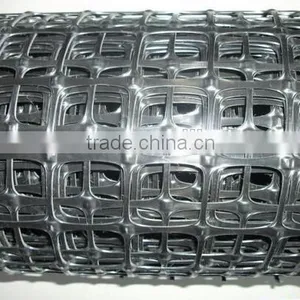

The plastic security network used underground in the coal mine is a kind of “double-resistant” plastic network developed independently by our company. The product is convenient to operate with the advantage of low cost and beautiful outlook. The main characteristic is that it is not easy to static friction and has good flame retardancy, anti-corrosion and it is convenient in the construction and transport to facilitate coal washing both vertically and horizontally to the carrying capacity.
Function
The product is mainly used at the time of protection for the exploitation of coal mine and also can be used as anchor of roadway support, anchor spray roadway and other material support. When used in the fake top, be sure to use double-deck joint above.
Feature
The product is based on polypropylene as the main raw materials, through flame-retardant, anti-static treatment, the bi-oriented approach taken by the formation of the overall structure of the grid network.
1. Attrition is not easy to cause static friction.
2. Good flame-retardant performance.
3. It can facilitate coal washing.
4. Strong anti-corrosion, anti-aging.
5. Facilitate the construction and transport, carry and construction.
6. Have strong carrying capacity in vertical and horizontal direction after extrusion and stretching process of the plastic, the molecular structure of materials is re-orientated.
Product specifications and performance parameters
Quality of unit area, size and deviation of the plastics security network used underground in the coal mine
Project |
HB PP 25-25MS |
HB PP 30-30MS |
Area weight g/m2 |
300± 50 |
400± 50 |
Roll length m |
5-50(+0.5) |
|
Width m |
4.0/3.5/3.0/2.5/2.0/1.5/1.0 |
|
Width error m |
0~+0.20 |
|
Mesh side mm |
40(± 5)× 40(± 5) |
|
Physical mechanical performance of the plastic security network used underground in the coal mine
Serial |
Project |
Units |
HB PP 25-25MS |
HB PP 30-30MS |
1 |
Each longitudinal tensile yield strength |
KN/M |
≥ 25 |
≥ 30 |
2 |
Each horizontal tensile yield strength |
KN/M |
≥ 25 |
≥ 30 |
3 |
Vertical yield elongation |
% |
<25 |
|
4 |
Horizontal yield elongation |
% |
<25 |
|
Mass per unit, size and deviation of plastic security network used underground in the coal mine
Project |
HB PP 25-25MS |
HB PP 30-30MS |
Area weight g/m2 |
300± 50 |
400± 50 |
Roll length m |
5-50(+0.5) |
|
Width m |
4.0/3.5/3.0/2.5/2.0/1.5/1.0 |
|
Width error m |
0~+0.20 |
|
Mesh side mm |
40(± 5)× 40(± 5) |
|
