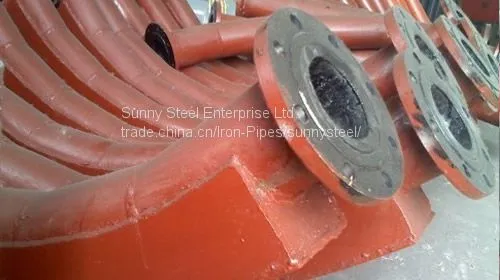

Ceramic lined composite pipe tee

Name: Ceramic lined composite pipe tee
Brand: Sunny Steel
Availability: InStock

FOB Price

USD $1000 - $3000 / Piece

10 Pieces(Min.Order)

Supply Ability 1000 Piece / Pieces per Month
Port Shanghai
Payment TermsT/T L/C D/P D/A
Delivery Detail30 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Sunny Steel		Place of Origin	China
Model Number	ASTM		Material	Steel

Product Description

Ceramic lined composite pipe tee, Resistant ceramic tee, Ceramic lined pipe tee, Ceramic lined tee
Abrasion resistant ceramic lined pipe from a single spool piece to complete piping systems. We specialize in ceramic restriction bend and flow conditioning assemblies to tame the most demanding flow applications.
The Manufacturing Process of Ceramic Lined Steel Pipe and Elbow:

SHS (Self-propagating High-temperature Synthetic process)ceramic lined steel pipe and elbow create a new generation of abrasion and corrosion resistant engineering pipeline.The composite steel pipe is composed of three layers: ceramic, intermediate, and steel layers. The ceramic layer is formed by molten alumina at a temperature above 2500 degree. The molten alumina produced from the reaction Fe2O3+2Al=2Fe+Al2O3 spreads on the inside wall of the steel pipe under the influence of a centrifugal force, then solidifies, so the ceramic layer has high density and smooth surface and bonds to the steel pipe.
Abrasion Resistant Ceramic Lined Pipes have been uniformly produced by a thermite reaction induced under the influence of a centrifugal force ('Centrifugal Thermite Process') without any high-temperature furnace facilities. The characteristic feature of the present process for forming uniform ceramic layers is in its reaction propagation as well as the reaction heat and centrifugal force. It is very important in improving the quality of the ceramic lined pipes to find the proper conditions of the reactant and centrifugal force; the former mainly determines the produced ceramic layer quality and the latter the achievement of layer separation and the mechanical properties of the pipes. Ceramic lined tube has great resistance against corrosion, abrasion and thermal shock.
No.
O.D
(mm)
W.T(steel)
(mm)
W.T(ceramic)
(mm)
Total W.T
(mm)
A
(mm)
Theoretics
unit weight
(Kg)
1
68
7
4
11
300
11.86
2
70
7
4
11
300
12.24
3
89
8
4
12
300
17.77
4
95
8
4
12
300
19.02
5
102
8
4
12
300
20.46
6
108
8
4
12
300
21.70
7
114
8
4
12
300
22.92
8
121
8
4
12
300
24.33
9
127
8
4
12
300
25.52
10
133
8
4
12
300
26.72
11
146
8
4
12
300
29.27
12
152
8
4
12
300
30.43
13
159
8
4
12
300
31.78
14
168
8
4
12
300
33.48
15
180
8
4
12
300
34.35
16
194
8
4
12
300
38.30
17
203
9
4.5
13.5
400
61.49
18
219
9
4.5
13.5
400
66.06
19
245
9
4.5
13.5
400
73.37
20
273
10
5
15
400
89.66
21
299
10
5
15
400
97.33
22
325
12
5
17
500
161.06
23
351
12
5
17
500
172.74
24
377
12
4.5
16.5
500
177.09
25
402
13
4.5
17.5
500
202.50
26
426
13
4.5
17.5
500
209.78
27
450
14
5
19
500
249.49
28
480
14
5
19
500
263.53
29
500
14
5
19
500
272.66
30
530
14
5
19
500
286.00
31
560
14
5
19
500
298.96
32
600
14
5
19
500
315.64
33
630
14
5
19
500
327.62
Remarks:
1. Under the direction of the arrow diagram for the export direction.
2. Bend radius is usually 1.5-5 times the diameter of steel pipe (1.5-5D).
3. Othe specifications of the compsite pipe can be manufactured accord to the user requirments.
4. The weight is caculate by theoretics, maybe have some tolerance, the real weight will be weigh in afer them finished.
Hoop strength is the resistance against radial pressure. The strength of the ceramic -lined steel composite pipe is 300 to 500MPa.
2. Features and Advantages:
1). High Abrasion Resistant:
Vickers hardness of the corundum lining is HV1100 to1500, as high as that of tungsten-cobalt hard alloys, and the abrasion resistance is 20 times as carbon steel pipes. The composite ceramic lined steel elbow was used in a mining plant for about fifty thousands hours. The general service life of common steel elbow is about 700 hours.
2). Corrosion Resistant:
Corundum is a neutral material, and is acid-proof and fouling -free.
3). Heat Resistant:
Ceramic lined composite steel pipe can work under circumstances of -50 to 800 Celsius degree .
4). Lower Weight and Convenient Installation:
The ceramic lined steel pipes are lighter than alloy pipes, cast iron pipes, and cast stone pipes and can be welded or connected through flanges, which reduces the expense of transportation and makes the pipes easier to install. For the pipes with the same sizes, types and length, the weight of ceramic pipe is about 1/2 of the wearable cast alloy steel pipe's, while the cost has reduced 10%~20% per meter. The weight of ceramic lined steel pipe is about 1/3 of the cast stone bent pipe's, 1/2 of the cast stone straight pipe's.
5). Lower Cost :
Ceramic lined pipes can take place of expensive stainless steel, titanium, nickel, cast stone or alloy pipes. Extended service life can also reduce maintenance cost.
