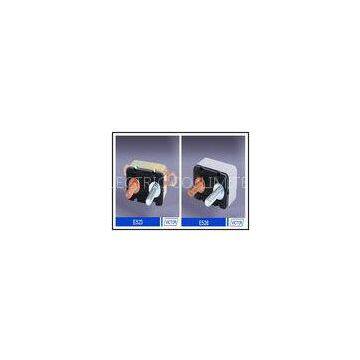

Help CenterStud Type Automative Circuit Breaker 1 Pole Self - Resetting 14V DC
Related Products
-
Stainless Steel Connection Points Truck Circuit Breaker / Automotive Circuit BreakerUS$ 0.6 - 1.5/MOQ: 1 Piece -
Interrupt Rating 3000A @ 30VDC Truck Circuit Breaker For Car , Marine , Circuit ProtectUS$ 0.6 - 1.5/MOQ: 1 Piece
-
Black UL Rate Thermoplastic Body 20 Amp Single Pole Circuit Breaker for TruckUS$ 0.6 - 1.5/MOQ: 1 Piece
-
Thermal Typer Resettable Circuit Breakers , Truck Circuit Breaker 25amp 50ampUS$ 0.6 - 1.5/MOQ: 1 Piece
-
Meet SAE J553 Truck Circuit Breaker Single Pole 5 - 50A , 14VDC , 28VDCUS$ 0.6 - 1.5/MOQ: 1 Kilogram
Certification:Meets SAE J553 Specification
Detailed Product Descripition:
Withstands Immersion In Water Up to 1 Meter Deep Truck Circuit Breaker For Car
Quick Detail:
Terminal: A, B, C, D, E, H, J, K, L
Stud:10-32\'\'(max.5A)
Quick Connector: 0.25\'\'(max.30A)
100% 150% 200% 300%
Less Than 25A >1800s <600s 5-40s 2-8s
Over 30A >1800s <600s 15-70s 4-12s
Description:
Spection: Single Poole Thermal Typer Breakers
Rating: 5-50A, 14VDC, 28VDC(For T2 and T3)
Interrupt Rating:(branch circuit production): 2.5KA @ 12VDC(T1& T1-28VDC, SEALED & T3)
Operating Temperature Rating: -40F(-40C) to 185F(85C)
Storage Temperature Rating: -40F(-40C) to 260F(125C)
Materials: Black UL rate thermoplastic body, (thermo set for T2 body & button)
Cover is gray thermoplastic or steel, T1-gold, T2-Silver
Marking: Custom marking available. Consult factory for option
Terminal: #10-32 thread and quick-connector available
Torque rating: 24in-lb(2.7Nm) max
Feature/Benefits:
1. Insensitive to momentary overload
2. Self-resetting characteristics
3. Cprotect safety to critical area
Applications:
1. Battery charger protect
2. RVs and marine systems
3. Circuit protect
Specifications:
|
Feature |
Single pole thermal trip |
|
Mouting |
Stud mount,2*10/32stud.0.66(Aux)0.50(Batt) |
|
Rating |
5,10,15,20,25,30,40,50A |
|
Voltage |
14Vdc,(24Vdc need special noted) |
|
IP grade |
Plase cover has splash /dust proof |
|
Safety |
Meets SAE J553 specification |
