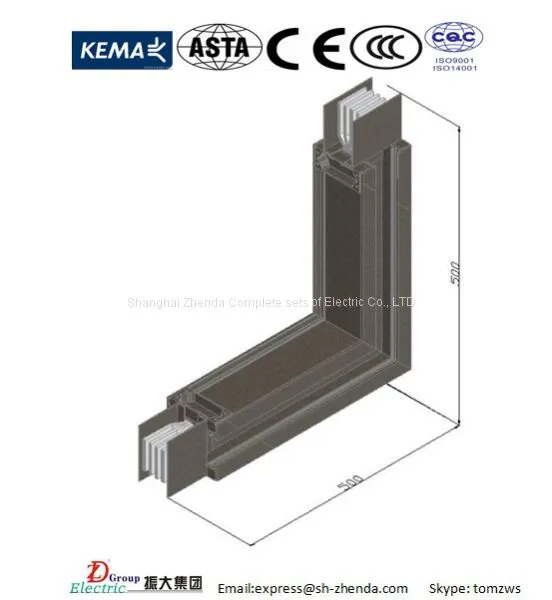

KEMA & ASTA low voltage compact busway

Person:Tom(Mr.)

express(at)sh-zhenda(dot)com

Compact busduct system

1 Current Rating: 100A~5000A (AL)or 400A~ 6300 A(CU)
2 System Voltage: 690V
3 Insulation voltage:upto 1000 V
4 Frequency:50Hz/60Hz
5 Conductor material: High conductivity Cu or AL
6 Extruded aluminum alloy house
7 Halogen free, Class-B-Mylar or Class-F-Epoxy powder coating
8 Ingress protection: IP54/IP55/IP65 as standard
9 Standard lengths of 4m/3m/2m/1m
10. Configuration of 3P3W / 3P4W / 3P5W with or without integral earth
11. Can be re-used after disassemble
