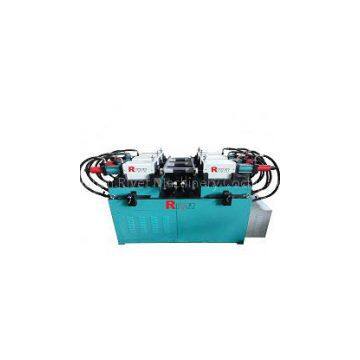

ZYJ-6 (Multi-head expanding machine)
As a leading manufactuer of riveting machine in China, Wuhan rivet machinery Co., Ltd as a strong new products development and research team,using it’s own special technology and patents of radial riveting machine principles to manufacturing variety of aluminium ladder making machine. It has been more than 10 year’s continuous improve and optimize that variety of ladder making machine covered all ladder’s making and manufacturing, Including expanding machine, flaring machine, expanding and flaring integrated on one bench machine, automatic flaring machine, automatic ladder making machine(insert rung, expanding, flaring are all by automatically), swaging machine, PLC control swaging machine, house ladder bending machine, punching machine, automatic punching machine, hinge riveting machine etc. Via more than 10 years manufacturing of ladder making machine that we have obtained substantial experience both machine manufacturing and ladder making technology, in order to meet customer’s requirment of large quantity production that we have successfully produced multi-head expanding machine and flaring machine: 6-heads (3-steps), 8-heads (4-steps),10-head(5-steps).
Expanding--Also called as open rung, the die insert into double side of rung to open and made it on profile tightly and outside of rung became the shape of teen. This technology application for square rung, rectangle rung and oval rung , the material generally by 6060: 6063 and hardness between WH 8°-12°, standard is RCS-T5, profile material is 6065 and hardness larger than 14°.
Specification:
▲ure 60Kn
▲Power 4Kw
▲Allowed out put pressure 6MPa
▲Expanding system move 150mm
▲Expanding cylinder stroke 150mm
▲Height of expanding 0.5-2mm adjustable
▲Process rung range Square,rectangle,oval etc
▲Width range of ladder 300mm-550mm
▲Distance of rung 250-310mm adjustable
▲Height of holder 270mm
▲Clamping cylinder 2 Nos.
▲Positioning cylinder 2 Nos.
▲Oil-tank volume 220L

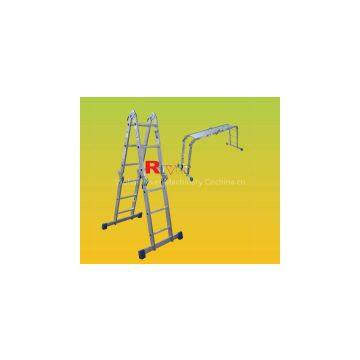

▲Pysical size 2400mmx1200mmx1300mm ▲Net weight 2000Kg Processed
samples & results
