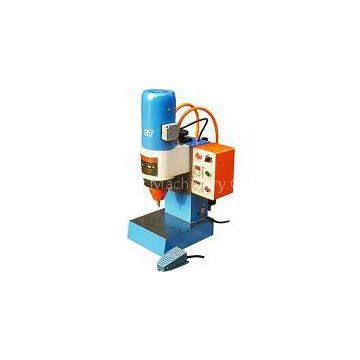

JM3TQ-B (Radial riveting machine)
■Pneumatic desktop
■Max. Process Dia. Φ3mm (solid steel rivet)
■Power head adjustable
■Pneumatic with stepless regulation
■Stroke speed adjustabl
■Radial structure
■Setting riveting time as will
Scope of application: instrumentations, hardware, electronic products,appliances etc.
Customized available
The model of JM3TQ-B is a kind of smaller desktop pneumatic riveting machine with radial structure. The machine's power head adjustment up and down to meet variety of workpiece's body and shape. The pneumatic system equipped with aerosol lubricating,double way regulation to control piston stroke speed effectively. Electric control system equipped with counter and time relay to easy and simple operations. T-slot on bench to fixing clamping apparatus available, positioning hole is coaxial with spindle to insure riveting process accuracy at ±0.02mm.
Specification:
▲ Max. riveting diameter Ф 3mm (solid steel rivet )
▲ Max riveting pressure 3.5Kn
▲ Working stroke 20mm
▲ Available work space 55mm
▲ Throat deep 80mm
▲ Riveting tool length 50mm
▲ Eccentric angle 4°
▲ Motive force Pneumatic
▲ Workbench dimensions 300mm×140mm
▲ Power 0.18Kw
▲ Physical size 390mm×330mm×650mm
▲ Net weight 70Kg
▲ Air source Pressure 4-5kgf/cm2, and flow 0.2 M3/ Min
