CSDB94-2 quilting machine can be used to quilt up to 5cm foamChishing machine compare with mammut machine it is much cheaper
Product Description:

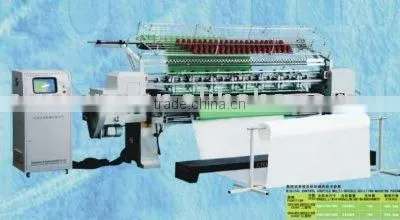

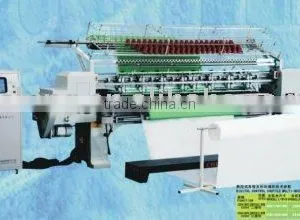

CS94-2 Digital Control Quilting machine
Main features: This quilting machine Adopting digital col program.
- Saddles and rollers driven by Panasonic servo devices.
- The revolution of the spindle controlled by Panasonic frequency conversion control devices.
- Large number of built-in quilting patterns for your choice.
- Easy and quick make new designs.
- 360 degrees quilting
- Tack and jump function included
- stitches between 2mm-6mm adjustable.
- Function of pattern compensation, an effective solution to the distortion of patterns when quilting thick
materials. - Simulation display of quilting.
- Automatic needle raising and location brake system.
Quilting width
94inch
Overall dimensions
4700*1200*1650mm
Needle distance
25.4mm
Needle row distance
1-2inch
Net weight
3400kg
Gross weight
3500kg
Running speed
200-500r/m
Output
20-100m/h
Max.thickness
50mm
Max.pattern size
6inch by 6inch(catercornered distance)
Voltage
380v 3 phrase
Power
3.5kw
X stroke
6inch
Stitch length
2-6mm adjustable
Precision and speed
Although each Chishing quilting machine is ideally tailored to suit your various requirements, all the models in our range are distinguished by the same high-quality features:
trend-setting sewing technology for high-strength and ultra-light materials
lange Lebensdauer durch robuste Bauweise
long operational life due to robust design
high operational durability and low wear-and-tear
user-friendly operation based on latest modern CNC-technology
accurate seams profiles at constant high speed
reliable and efficient quilting of both thick and thin fabrics
maximum precision even with thin needles
extra-large bottom-thread spools (lock-stitch-quilters)
Designed for a variety of special applications, Mammut's range of automatic quilters guarantees unparalleled high-quality performance and efficiency Payment term:
-
Take 30% of the total price as advance payment by T/T,the balance should be paid off before delivery by T/T.
Delivery term:
Normally the goods will be delivered within 30-45days after received the 30% of the contract value. (But the delivery term can be adjusted according to practical
situation)Packing:
ChiShing company's normal export packing (oiling+ plastic paper packing +fabric and polyester fiber packing
then fixing )Installation:
The seller is responsible for installation and debugging. The whole installation will take7to10 days,and the seller
will send 1 engineer for installation.The buyer is responsible for the round-trip airplane tickets,accommodation,
medical treatment, safety and relative fees.In addition the buyers should assign workers, electrical wire outside the electric cabinet and tools for installation
to cooperate with the work. The installation cost USD50/Day will be paid by ChiShing.Guarantee:
The seller is responsible for changing the parts which have the quality problem of the machines in one year,but
except from the wearing parts and the quality problem were leaded by wrong operation and other man made
factors,and the quality problem should be confirmed by two sides.
