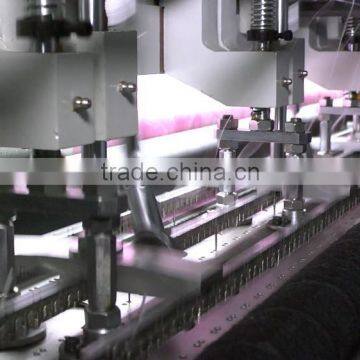

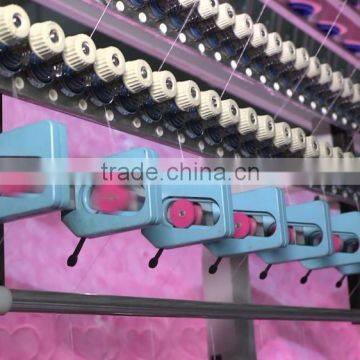

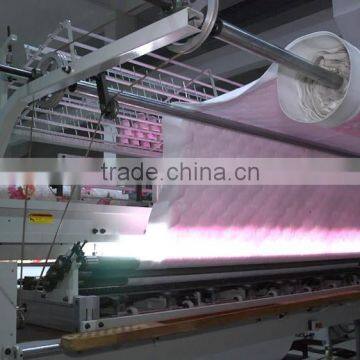

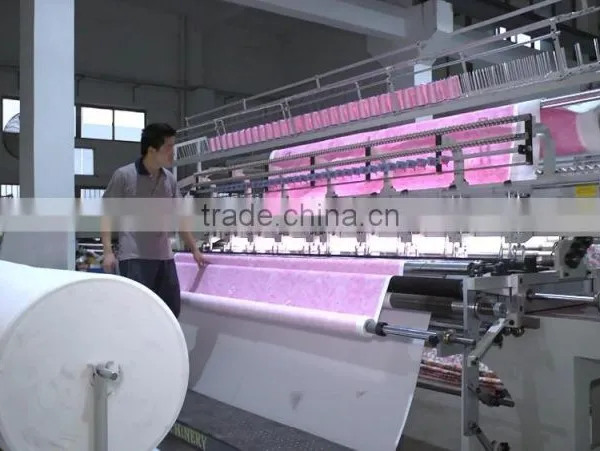

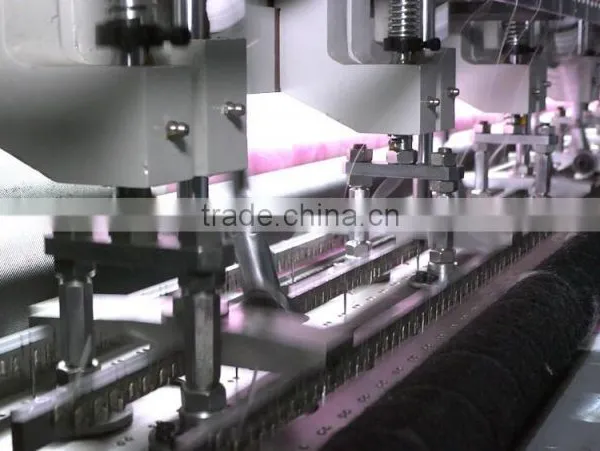

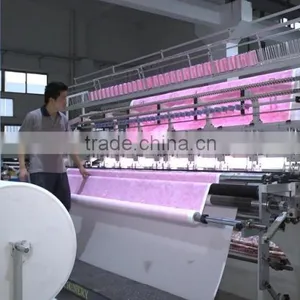

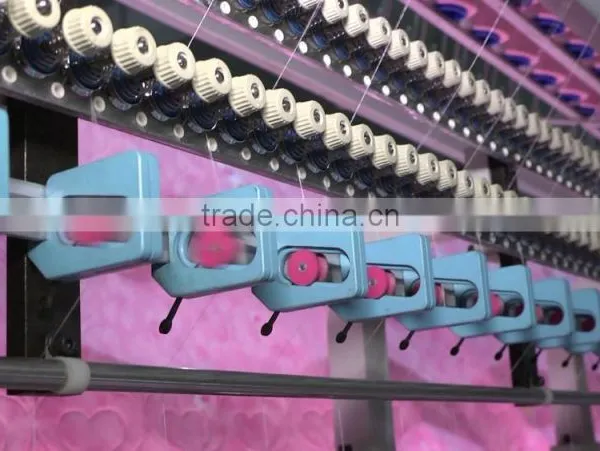

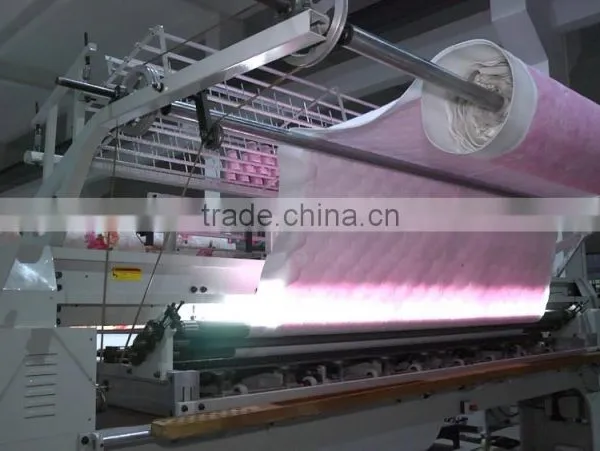

CS128inch digital control quilting and sewing Machine

Specifications

The 128inch three needle row quilting machine is the ideal choice to process the mattress protectors. High accuracyand longlif



CSDB128"-3 digital control quilting and sewing machine .
1. D: Digital control; B: Big shuttle (HQ10 Japaneseshuttle )
2. 128": 128inch width (3251mm)
3. 3: Three needle row
4. Overall dimentions: 5600*1200*1650mm
5: Weight: 4500kg.
6: Running speed: 200-500r/m.
7: Needle distance: 25.4mm.
8. Rating power: 6.2kw.
9. Thickness: ≤30mm.
10. Max. Pattern size: 12inch by 12inch .

11.saddle stroke:12inch (304.8mm)
*This quilting machine Adopting digital control program.

*Saddles and rollers driven by Panasonic servo devices.

*The revolution of the spindle controlled by panasonic frequency conversion control devices.

*Large number of built-in quilting patterns for your choice.

*Easy and quick make new designs.

*360 degrees quilting .

*Tack and jump function included.

*stitches between 2mm-6mm adjustable.

*Function of pattern compensation, an effective solution to the distortion of patterns when quilting thick materials.

*Simulation display of quilting.

*Automatic needle raising and location brake system.

*Function of automatic stop on breaking of thread(optional).

*Infrared sensors to guarantee the safety of the operator.

*simple embroidery patterns can be made.
