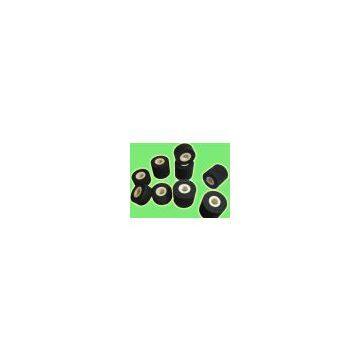

Hot Ink Roll

Standard

L type

90º - 135ºC

The standard, low temperature formulation offers medium scratch resistance on most packaging films. Contact with secondary heat sources should be avoided due to the low working temperature. Ideal for thin films where higher temperatures may cause the die to burn through the substrate.

Premium

H Type

135º - 155ºC

Mid temperature grade producing clean, densely coloured, well defined prints with very good scratch and smudge resistance. Performs on most packaging films such as Polyethylene, Polypropylene, Nylon and Polyester together with a wide range of surface treated papers and boards.

Super

S type

150º - 175ºC

Superior adhesion and smear resistance operating at the higher end of printing temperatures. Versatile formulation suitable for Polyethylene, Polypropylene, and many other coated and uncoated films and papers.

Hi Temp

HG Type

150º - 190ºC

Best abrasion and smear resistance operating at the highest of temperatures. Ideally suited for Polypropylene and Mylar laminates, RR series inks should be considered when the print quickly passes over vertical packaging machinery forming shoulders.

ID

OD

Height

Pcs/box

Markem 9000 Series

11

36

16

24

Markem 9000 Series

11

36

32

12

Markem 9000 Series

11

36

48

12

EDM, Overprint Rapide

11

40

40

12

Imaje Datoflash

10

32

32

12

Imaje Datoflow S3

10

40

32

12

Kortho

10

30

25

12
