Used Vertical Lathe Machine Price for Sale

Hengshui Shengyong Heavy-duty Machine Tool Manufacturing Co.,Ltd specializes in the manufactures and sells of metalworking machines: Vertical turret lathe,CNC lathe machine,Single column vertical lathe , Double column vertical lathe machine ,Heavy duty horizontal lathe machine, Gantry milling machine(Plano Miller), Gantry Planer Milling Machine, Roll turning lathe, Floor type boring lathe etc.

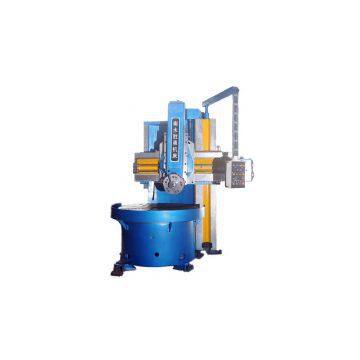

Technical specification of used vertical turning lathe VTL machine C5120

1 Table diameter 1800 mm
2 Maximum turning diameter 2000 mm
3 Maximum height of workpiece 1200 mm
4 Maximum weight of workpiece 6 t
5 Speed change of table 2.5-80 r/min
6 rotation speed of work table 16
7 Feed rates 0.8-86 mm/min
8 Step 12
9 Horizontal travel of tool post 1000 mm
Vertical travel of tool post 800 mm
10 Horizontal travel of side cutter bar 630 mm
Vertical travel of side cutter bar 1000 mm
11 Crossrail travel 700 mm
12 Maximum section scale of tool bar 30×40 mm
13 Power of main motor 30 kw
revolutions 1470 r/min
14 Power of Feed motor 1.3/1.7 kw
Revolutions 940/1440 r/min
15 Machine weight 17.5 t
16 Overall dimensions(L×W×H) 3100×3000×3850 mm
