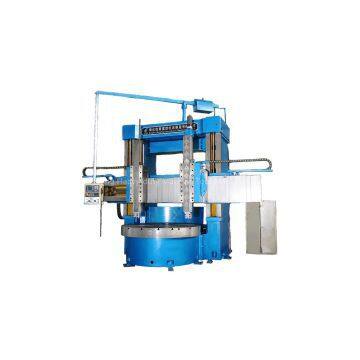

Technical specification of Large vertical turret lathes machine CK5120
1 Table diameter 1800 mm
2 Maximum turning diameter 2000 mm
3 Maximum height of workpiece 1200 mm
4 Maximum weight of workpiece 6 t
5 Speed change of table 2.5-80r/min
6 Rotation speed of work table 16
7 Feed rates 0-1000 mm/min
8 Step stepless
9 Horizontal travel of tool post 1000 mm
Vertical travel of tool post 800 mm
10 Horizontal travel of side cutter bar 630 mm
Vertical travel of side cutter bar 1000 mm
11 Crossrail travel 700 mm
12 Maximum section scale of tool bar 30×40 mm
13 Power of main motor 30 kw
revolutions 1470 r/min
14 Power of Feed motor 1.3/1.7 kw
Revolutions 940/1440 r/min
15 Rapid travelling speed of tool post 2000 mm/min
16 Machine weight 17.5 t
17 Overall dimensions(L×W×H) 3100×3000×3850mm
