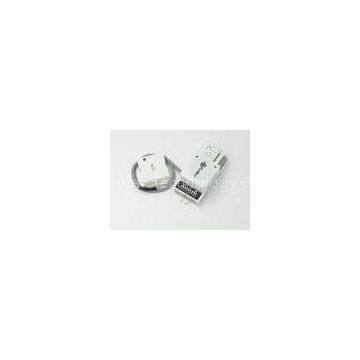

1 – 10V dimming Microwave motion sensor MC011DV CE & R&TTE approval
Description
High PF value Economic solution for 1-10v dimming, save cost for use DC input design Sensor data can be simply set via DIP switch.. Automatic switching based on motion 4-pole press-in terminal (L, N, N, L′), easy assembly. Compact size, suitable to fix within most luminaries. Wide detection area, range up to 16m in diameter. The sensor provides a simple and cost-effective dimming solution. With DC operation voltage from LED driver, no need extra power from line. Work with 1-10v dimmable led driver for 2-step dimming function. Particularly suitable for price sensitive luminaries.On-off function
2- Step dimming function
Specifications:
|
Operating voltage |
13 - 40Vdc |
|
Rated load |
Max.40wLED light |
|
HF system |
5.8GHz±75MHz, ISM wave band |
|
Operating current |
1A max |
|
Power consumption |
≤0.5W(standby), <1W(operation) |
|
Transmitting power |
<0.5mW |
|
Detection zone Max.(D x H) |
16m x 6m |
|
Motion detection |
0.5~3m/s |
|
Detection angle |
150°(wall installation) 360°(ceiling installation) |
|
IP rating |
IP20 |
|
Operation Temperature |
-20℃ ~ 50℃ |
|
Hold time |
10s/30s/90s/3min/20min/30min |
|
Detection sensitivity |
10％/25%/50％/75％/100％ |
|
Dimming level |
10%/20%/30%/40% 50% |
|
Dimming mode |
Gradullay dimming |
|
Life time |
50000 hours |
|
Guaranty |
5 years |
5 years
Wiring:
Applications:
Stairwell, Corridor, Balcony, Pathway, etc.
