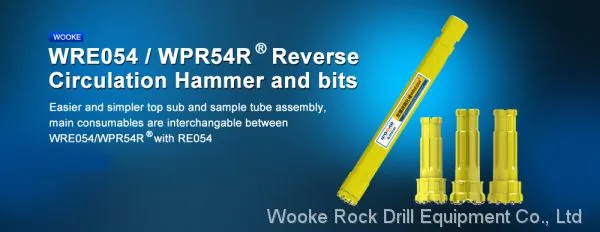

WRE054/WPR54R Reverse Circulation hammer and bits
Product Description
Eaiser and simpler top sub and sample tube assembly, main consumables are interchangable between WRE054/WPR54R.
The WRE054/WPR54R has been designed to give maximum performance in Exploration and Grade control applications. The integral adaptor housing allows easy access to the long lasting sample tubes. The enhanced performance stems from a simple robust design that reduces complicated maintenance procedures, providing less down time and greater savings.
The WRE054/WPR54R also features improves flushing characteristics from high velocity air flow directed through the drill bit. A variety of thread connections are available whichincludes options for both Remet and Metzke. The WRE054/WPR54R is equipped with an integral Drill Bit Catcher system for added peace of mind. It also has a sub adaptor body to suit most dual wall drill pipes.
The design features of the new WRE054/WPR54R combine to give an increase in drilling ROP, an increase in service life, and most importantly, greater sample recovery quality.
Drill bit diameters:137-146mm (5 1/4''-6'')
Suitable for operation at air pressures:15-35 bar.
WRE054/WPR54R available bits:
135mm (5 1/4'')
140mm (5 1/2'')
146mm (5 3/4'')
152mm (6'')

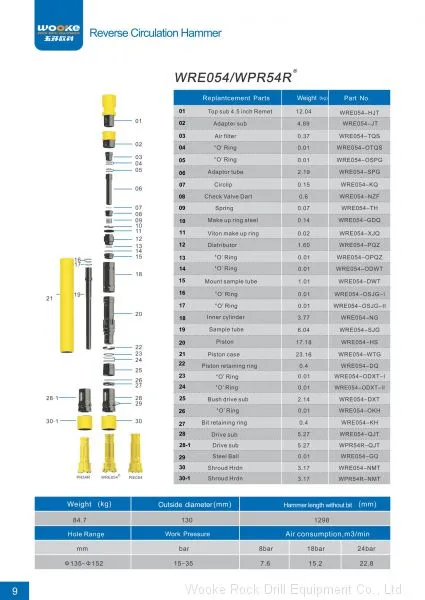

Production Specification

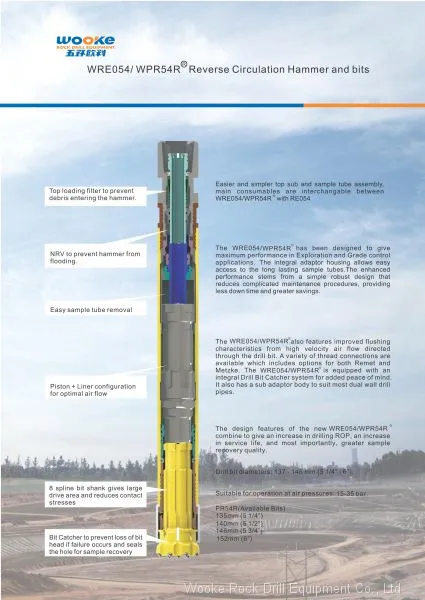

Top loading filter to prevent debris entering the hammer
NRV to prevent hammer from flooding
Easy sample tube removal
Piston+Liner configuration for optimal air flow
8 spline bit shank gives large drive area and reduces contact stresses
Bit Catcher to prevent loss of bit head if failure occurs and seals the hole for sample recovery
Our Company
One of the Leading Manufacturers of Rock Drill Equipment
Wooke Rock Drill Equipment Co., Ltd is one of the leading and ISO9001:2008 certificated manufacturers of rock drill equipment established in 1995. We are also one of the three biggest air pressure DTH drilling tools factories in China, as well as one of the best high-air-pressure DTH drilling tool manufacturers in China. We have more than 300 workers, 40,000 square meters workshop and 22 year's of rich experience in drilling industry.
Various Famous Buyes Source from us
We mainly manufacture and supply global buyers a variety of high, medium and low air pressure hammers and bits, API thread drill pipes, eccentric casing systems, and hydraulic top hammers including tapered button bits, coupling sleeves and shank adaters with high quality. Our products are also perfect compatible with the famous brands such as Atlas Copco, Ingersoll-Rand, Sandvik and other well-known manufacturers with high durability and long working life.
Our DTH products are widely used in China, South America, Australia, South Korea, Brazil and Russia, etc. Our factory is not only major supplier to some famous Chinese drilling industry and we also have some big buyers from some trading company, and then came to cooperate with us proactively.
Work with us Today.
Can you give us a chance to prove that we can do better than your current supplier? We hope to find a way to work with you, look forward to contact with you and discuss the possible deals. Contact us to embrace a booming business.
Our Factory
Specialties:
1. Technology research and Development Center.
2. Italy Ji Aifei produced heat treatment production line.
3. Modern CNC production lines (metal processing).
Packing & Shipping
OEM is accepted.
Any kind of shipping method according to your specific requirements will be satisfied.
