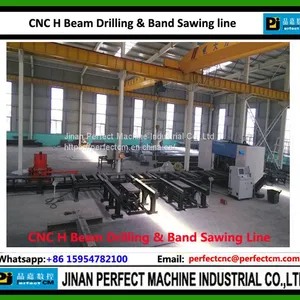

CNC H Beam Drilling and Band Sawing Machine
- 1000 Set / Sets per Month
- T/T L/C D/P D/A
- 7 days
- 4 axis CNC Milling Machine To Router 2d 3d Woodworking Craft
- automatic welding machine for stainless steel commerical sink panel and bowl
- Stainless Steel Heavy and large Box Semi-Automatic Polishing Machine Gantry Polishing Machine
- SPECIAL METAL WIRE WEAVING MACHINE
- MODERN WIRE MESH WEAVING MACHINES FROM LANYING FOR BRASS WIRE MESH WEAVING
- LANYING stainless steel woven wire mesh machines
Product Details
Brand Name: | Perfect | Place of Origin: | China | Model Number: | DJ1000 |
Product Description
CNC Rotation Angle Band Sawing Machine (Model DJ1000/DJ1250)
APPLICABLE INDUSTRY:
The machine is mainly used to cut H-beams,Channels,Pipes and other profiles etc.
PRODUCT FEATURE:
1. The machine is mainly composed of sawing fram, worktable, vertical feeding device, vertical pressing device, rotation worktable, carriage for feeding workpiece, hydraulic system, cooling system and electric system etc.
2. The feeding speed can be adjusted automatically according to different section and also realize reciprocating saw.
3. High efficiency and high precision rotation angle positioning.
4. The machine is equipped with clamp carriage which can automatically identify the infeed length of H-beam, which can get automatically control of all the process.
5. Use touch screen to input the dimension of the workpiece, the processing data can be shown and monitored real-time.
6. Powerful sawing capacity is specially designed for processing different kinds of profiled bars in steel structure industry.
Specifications:Model DJ1000/DJ1250
Dimensions For H-Beams
Web Height x Flange Width (mm)
Max. 1000x500
Max. 1250x600
200x75
Saw Blade Size (mm)
T:1.6;W:54;L:8500
T:1.6;W:67;L:9300
Saw Blade Lineal Speed (m/min)
20~100
Table Height (mm)
800
