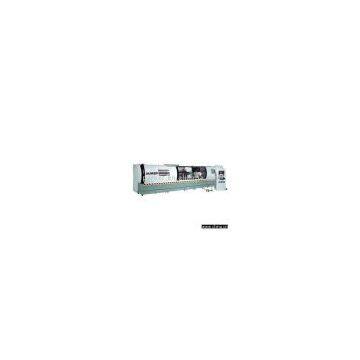

Sell Curtain Walls Drilling-Milling Processing Center

Model No.:DMCC60
Product Origin:China
Brand Name:Parker
Price Terms:
Payment Terms:
Certification:
Description:Product Name: Curtain Walls Drilling-Milling Processing CenterModel Number: DMCC60Place of Origin: ChinaMain specifications and standard data: 1) X-way range: 6,500mm 2) Y-way range: 550mm 3) Z-way range: 550mm 4) X-way speed: 0-60m/min 5) Y-way range: 0-30m/min 6) Z-way speed: 0-20m/min 7) Main shaft rev./power: 0-2,400rpm/7.5kW 8) Gyrating range: +90°~0°~-90° 9) Cutter max. length: 165mm 10) Saw blade diameter: Φ150mm 11) Pneumatic pressure: 0.5-0.8MPa 12) Electricity: 380V, 50Hz 13) Total power: 12kW 14) Clamping station/range: 2/400mm 15) Work area (W x H x L): 180 x 180 x 5,800mm 16) Overall dimensions: 8,600 x 2,010 x 2,310mm 17) Weight: 4,600kg Main features: 1) The 4th axis, c-axis: any angle achievable, between 90°~0°~-90° 2) 7 cutter loader: provides cutter auto-commuted 3) Safety: enclosed protector 4) 6 pneumatic clamps, 1 pneumatic length locator 5) Main shaft: 7.5kW 6) Speed: 0-2,400rpm, CNC speed control 7) ISO30 cutter handle, and sensor automatically detects cutter location 8) Max. processing range: 6,500mm 9) Hi-effective multi-axis movement controller: CNC + servo movement control system 10) Display: 12.1" TFT LCD; CPU P1.0GHz; 3.5" portable HDD
