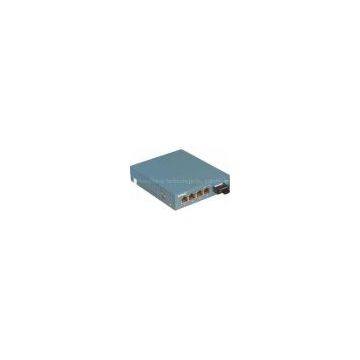

10/100M Fiber Ethernet Media Converter
With 4 Ethernet Ports& 1 Fiber Port
Internal Power Supply
FT-10/100-4 Series
Brief:
FT-10/100-4TX series Ethernet media converter provides connection and switch from 10/100Base-TX to 100Base-FX. It can extend network distance from 100m over copper to 2km over multimode fiber or to 100km over single mode fiber.
FT-10/100-4TX also offers 4x100Mbps Full-Duplex power ports.
Features:
Compliant with IEEE802.3/u 10Base-T and 100BASE-TX/FX standard. Support 802.3x full-duplex flow control and Back Pressure half-duplex flow control Support Auto MDI/MDIX auto-negotiation 4*RJ45 ports are isolated, and should work in pairs with the facility which got the same series number. Support power ports configuring of Bit-rate, duplex status, and Auto-negotiate 10/100M based on net-work management. Support link-loss alarm function, can transmit fiber interruption alarm to power ports based on net-work management. Support primary setting of ports by on/off switches. Support 1916kbs frame transmission, can compliant with transmission sorts of extended protocol data frame.Technical Specifications：
|
Standard Protocol |
IEEE802.3 10 Base-T standard IEEE 802.3u 100Base-TX/FX standard |
|
Connector |
Two RJ-45 connector, one SC/ST fiber connector |
|
Operation mode |
Full duplex mode or half duplex mode |
|
Power consumption |
<5W |
|
operation temperature |
0~50℃ |
|
Storage temperature |
-20~70℃ |
|
Humidity |
10%~90% no condension |
|
Measurement |
120(W)×32(H)×146(D)mm (stand-alone) 145×75mm (slide-in modules) |
