Product Details
| Brand Name | Tecon | Place of Origin | China | |
| Model Number | ZT9802SD |
Product Description
Certification:CE

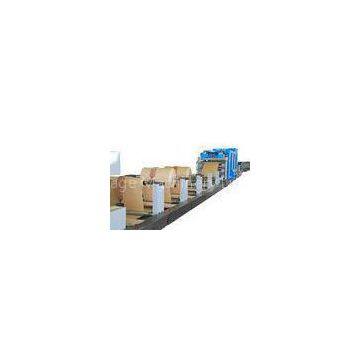

High-speed Automatic Bottom-pasted Paper Bag Making Machine with Servo System
Features of our full-automatic paper bag production line Flat & glued bottom with filling valve; Different types for cement, chemicals, foods, tea, etc. 2-color automatic printing 2~4 paper layers, with one extra PE/PP film available 35~50 million bags/year Servo system control or PLC control available, integrated with Photoelectric & Pneumatic control system, Siemens electrical system Full technical service for installation, training and maintenance Full solution for factory construction and materials purchase. Technical parameters of our production lineZT9802SD Tuber Machine
Operating condition
|
Working hour |
22 hours/day |
|
Design temperature |
0~40℃ |
|
Design humidity |
MAX. 95% |
|
Number required |
1 unit |
|
Model name |
ZT9802SD |
Performance
|
Speed |
120 tubes/min(Depends on paper quality, number of ply and operators’ skill.) |
|
Tube length |
400~1400 mm |
|
Tube width |
320~620 mm |
|
Tube Cut Length |
420~1400mm |
|
Number of ply |
2~4 paper + 1 PP/PE(Please specify if you need paper bag with PP film) |
|
Diameter of print roller |
ø196～ø312 mm |
|
Printing width |
1300 mm(MAX) |
|
Paper reel width |
660~1260 mm |
|
Paper reel diameter |
Max. 1, 300 mm |
|
Air consumption |
1,100L/min |
|
Main drive motor |
27kw |
|
Size of whole set |
35.3m×2.4m×2.7m( L×W×H) |
|
Total weight |
34 T |
Composing of the machine
ZT9802SD Tuber Machine
|
Name |
Quantity |
|
2-color printing machine |
1 |
|
Mill roll stands |
5 |
|
Paper web guide |
1 |
|
Automatic paper unwinding |
1 |
|
Auxiliary web guide |
1 |
|
Perforation unit |
1 |
|
Cross stepped gluing unit |
1 |
|
Longitude seam gluing unit |
1 |
|
Tubes forming unit |
1 |
|
Driving tearing-off unit |
1 |
|
Delivery and counting unit |
1 |
|
Electrical system |
1 (Schneider, France) |
|
Bearing |
(NSK, Japan) |
|
Compressor |
1 |
|
Servo motors |
4 |
The ZT9802SD tuber machine, which is developed by our company on the basis of ZT9804 standard tuber machine, is added a servo control component on each of the four key processes (printing, perforation, gluing and separation), to form a closed-loop servo control system by the PLC, servo control module, the main frequency traction motor, servo motor group,encoder, color components to ensure that the cutting position of each printing bags matches the color patch of the tube. Through the touch screen, it is easy and visualized to adjust the specification of tube.
When it is on-line printing, ZT01 print unit prints precisely and neatly, and it only needs to replace print roller and its gear. Through adjustment of thorn-ranked knife position, ZT07 separation machine can cut both the ladder-cutting and straight-cutting tubes. Other related adjustments are operated on touch screen, saving of labor and tim
