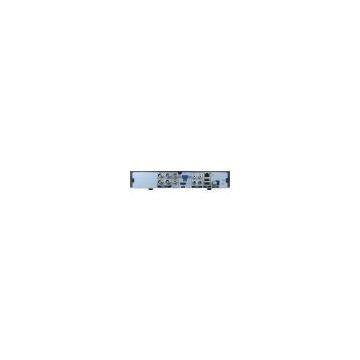

4CH HD IDVR 3 in 1 ( DVR\\\\HVR\\\\NVR ) All Camera Compatible (IP or not IP)

Name

4CH HD IDVR

System

Main processor

Hi3520D

Operating system

Embedded LINUX operating system

System resource

Multi-channel real-time recording synchronously, multi-channel real-time playback, multi-channel multi-user network operation, USB back up.

Interface

Operation interface

16 bit real color GUI interface support mouse operation

Display screen

(Take all analog input as an example, others are depended on the selected channel mode)

1/4 screen

Video

Video standard

PAL(625 lines,50fps);NTSC(525lines,60fps)

Image encode

H.264(High Profile);

Monitor quality

Monitor:D1;VGA:High Definition;HDMI:High definition

Playback quality

Max support 1080P;under local analog input mode:

960H/D1/HD1/CIF/QCIF

Encode capability

4ch D1/960H real-time

Decode capability

4ch D1/960H real-time

Multi-mode video input

Local analog input:

4*D1/4 *960H

Local analog + network digital input:

2 *D1+(1*1080P

+1*720P)

All network digital input:

8*960H

/4*720P /2*1080P

/1*720P+7*D1

/1*1080P+1*720P

+2*D1

Motion detection

Each channel can set 192(16*12)detection area;can set multi-level of flexibility (for local analog channel only)

Audio

Audio compression

G711A

Bidirectional talk

support

Record and playback

Record mode

manual>alarm>motion detection>timing

Local playback

1-9ch playback synchronously

Under the mode of local 4*960H,

Max support 4ch playback

(4*960H @25fps)

Video search

Time,date,event,channel search

Storage and back up

Space occupation

Video:CIF 4~5G/day*channel, D1 16~20G/day*channel;
audio:691.2M/day*channel

Video storage

Local HDD ,Network

Back up mode

Network backup,USB portable HDD,USB imprint,SATA imprint

Interface

Video input

4ch BNC

Video output

1ch BNC,1ch VGA,1ch HDMI

Audio input

4ch RCA

Audio output

1ch RCA

Alarm input

N/A

Alarm output

N/A

Network interface

RJ45 10M/100M self-adaptive Ethernet port

PTZ control

1 RS485;support multi kinds of PTZ protocol

USB port

2*USB2.0

HDD port

1 SATA port(each max support 2048G)

Wireless port

3G,WIFI(extension via USB port)

Other

Power

12V/3A

Dimension

255mm(Length)* 225mm(Width)* 45mm(Height)
