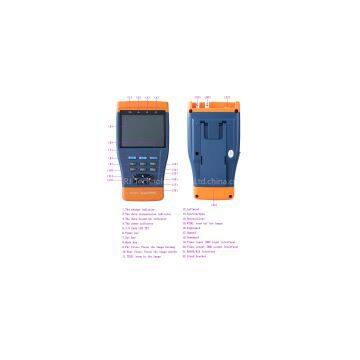

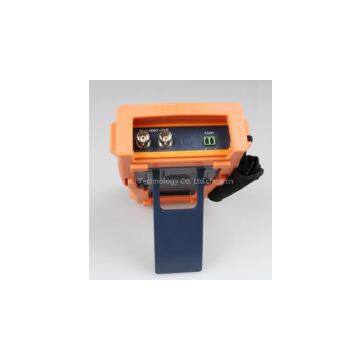

TFT-LCD Monitor / PTZ Controller / Video signal generator / UTP cable tester
The is developed for the installation and maintenance of video monitoring system. It can be used for displaying video, controlling PTZ,
generating images, capturing data of RS485 and testing LAN cable etc. Its functions, easy operation, and convenient portability enable it simple for the contractor to install and maintain the video camera, promote working efficiency and cost-down the expenditure of the project.
Applications:
CCTV system installation and maintenance
Dome camera and All in one camera testing
The CCTV transmitting channel testing
PTZ controlle
Features:
1. 3.5" high definition LCD display, 960( H) × 240 ( V) resolution
2. DC12V/1A power output for camera
3. Video Signal Intensity Testing
4. Audio input testing
5. PTZ control. Pan/tilts the P/T unit, zooms in/out the lens, adjusts the focus, aperture and sets and calls the preset position
6. Video displaying. Automatically adapts and displays the video format of NTSC/PAL
7. LCD Brightness/Contrast/Color Saturation adjustable
8. Video Generating, The PAL/NTSC multi-system colorbar video generator (seven-system)
9. Data analysis. Captures and analyzes RS485 controlling data to help the technicians to find out the problem
10. Cable testing. It is powerful in testing LAN cables, measuring the connecting status, displaying the sequence of connection and the NO. of the LAN cable
11. Multi-interface and Multi-baudrate. Support RS232 ,RS485 and RS422 interface; baud rate ranging from 150, 600 to 19200bps
12. Multi-protocol. Supports more than twenty PTZ protocols. For example, PELCO-P, PELCO-D, SAMSUNG etc
13. PTZ address scanning, search up the ID of PTZ camera
14. Lithium Ion Polymer Battery (3.7V DC3000mAh). Adopts advanced power control and protection circuit. High power-efficient, energy saving and environmental protection. It can last 12 hours for normal use after charging for 4 hours
15. The Protocols it support: Pelco_D, YAAN, YAAN-O, Samsung, Panasonic, Lilin-FAST, Linlin-MLP2, Molynx, Minkking A01, Fastrax, CBC, LC-NEW, WV-CS850, SONY-EVI, LG-MULTIX, DAT-SD, PEARMAIN, Vicon, Vcltp, DH-YTC06, SANYO-SSP, Santachi, BOSCH OSRD, TeleEye DM2, HD600, Hikvision, Kalatel 304, Kalatel ASC, AD 168(M-B), AD manchest, Minking B01, ALEC, Pelco P
