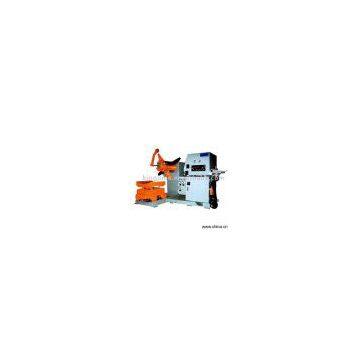

Sell 3-In-1 NC Servo Feeder Straightener and Uncoiler

Model No.:TLF1-500
Product Origin:China
Brand Name:King Jime
Price Terms:FOB Shenzhen
Payment Terms:L/C
Certification:
Description:Specifications: 1) Model: TLF1-400 / 500 / 600 / 700 / 800 2) Material width (mm): 400 / 500 / 600 / 700 / 800 3) Material thickness (mm): 0.3 - 3.2 4) Coil load (kg): 2,000 / 3,000 5) Coil. I. dia. (mm): 508 6) Coil. O. dia. (mm): 1,200 7) Speed (m/min): 16 8) Servo motor (kW): AC 3.5 / AC 5 9) Coil expansion: hydraulic 10) Uncoil sensor: photo sensor 11) Uncoil motor (kW): AC 0.75 / AC 1.5 12) Coil car: optional 13) Air hold down arm: stander 14) 3 in 1 machine have device to bring the strip from decoiler into straightener automatically without man power Feeding feature by PLC program from Mitsubishi: 1) NC Servo feeding, operating with computerize numerical control by PLC program from Mitsubishi made in Japan. The electrical parts from YASKAWA made in Japan including Servo motor, driver, encoder, and interface screen 2) High precision feeding: to meet the coming of hi-tech industry, controlled by computer closed circuit feedback system to keep precision degree within
