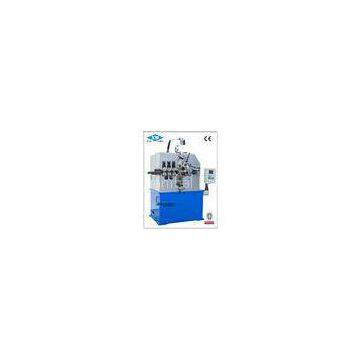

XD-240 two axis CNC spring coiling machine for compression spring 150pcs/min
Details:
1. XD-240 compression spring machine is a 2-axis spring machine consisting of wire feeding axis and
cam axis. The spring machine’s two axes can act independently of synchronously by build the progra.
2. 15\" control panel ,easy to operate,
3. Cam can be moved clockwise or anti –clockwise:wire feed length can be changed whise running the machine,
4. Computer can automatically detect the temperature of the motor and slow down the running speed
to protect the motor from overheating,
5. Compute can automatically decelerate according to the timing when the probe should be used,
6. Prodution speed can be increased or decreased at any ting running the machine,
7. Not only does have the convenient mechanization,but also the high speed and accuracy resulted
from servo motion system.
Technical Parameter:
| Model: |
XD-240 |
|
Wire diameter: |
φ1.5～4.0 mm |
|
Axes: |
2 axes |
|
Maximum Outside Diameter: |
70 mm |
|
Maximum Feeding Length: |
unlimited |
|
Maximum Manufacture Speed: |
150pcs/min |
|
Feed Speed |
80m/min |
|
Memory Number: |
1000PCS |
|
Wire Feed Servo Motor: |
3.8 KW |
|
Cam Servo Motor: |
2.7 KW |
|
Power AC: |
3-Phase 220V |
|
Dimensions (L*D*H): |
1600X1200X1800mm |
|
Wooden Case Dimensions |
1700x1300x2000mm |
|
Machine Weight: |
1600Kg |
|
Gross Weights |
1700Kg |
Dongguan Xinding Mechanical Equipment Co.,Ltd
Dongguan Xinding Mechanical Equipment Co.,Ltd is a production&sales combined company, with
more than 10 years of hard work,we accomplished to be a experienced and reliable CNC spring
machine supplier.Our products are CNC compression spring machine and CNC universal spring
making machine.The machine covers spring wire diameter from 0.08mm to 6.0mm, including
spring types like, compressionsprings, torsional springs, extension springs, wire
forms, abnormal-shaped springs ect.
Our Products
Compression spring machines: XD-208, XD-220, XD-230, XD-235, XD-345 series and versatile spring machine XD-CNC10, XD-CNC20 and XD-CNC35 universal series.
Why us
· 13 years of experience in this line
· All machines recieve good comments from customer
· Independent R&D ability
· Always happy to serve and work with our customers
Applicated products:
