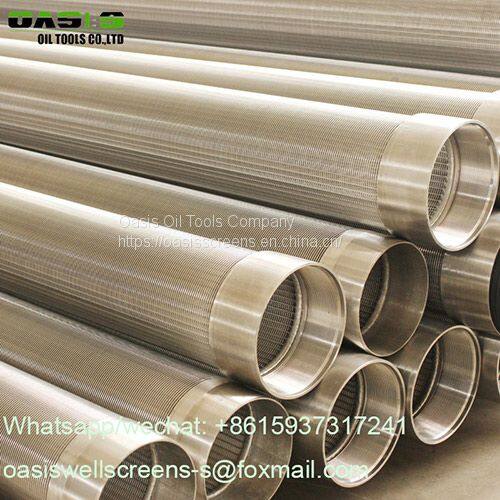

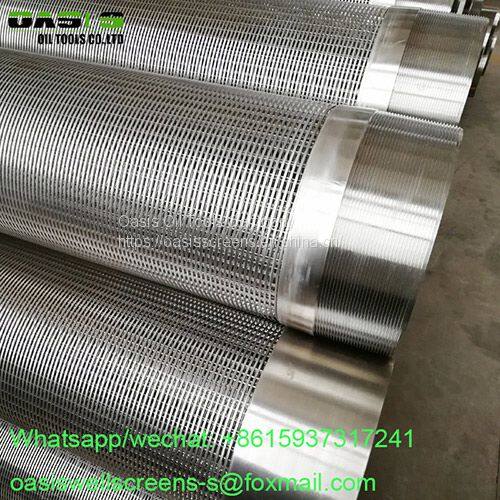

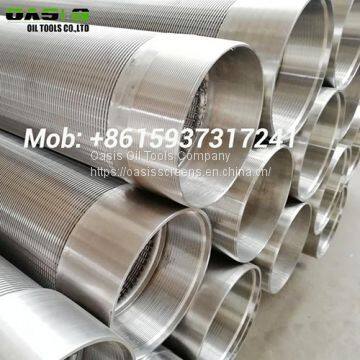

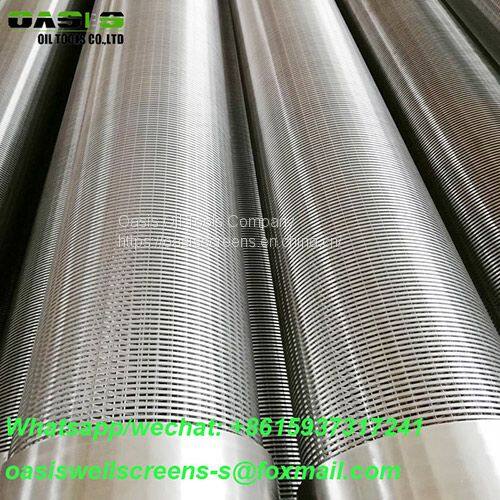

6inch stainless steel 316L Johnson screens pipe
stainless steel johnson screens by OASIS has a high open area compared with other screen media, then this kind of water well screens allows lower entrance velocity and higher flow rates through the screen. Stainless steel wedge wire screens give continuous slot openings that widen inwardly. This makes the screen self-cleaning by allowing "near slot size" particles to pass through the screen rather than plug the opening.
Specifications of stainless steel johnson screens pipe:
Slot size (mm): 0.10, 0.15, 0.2, 0.25, 0.30-3mm
Open area: up to 60%
Material: low carbon, low carbon galvanized steel (LCG) steel , stainless steel (304 etc.)
Lengths up to 6 meters for container
Diameter: ranging from 25 to 800mm
End connection: threaded coupling or welded end
Material: Low Carbon Galvanized ( LCG ) and Stainless Steel (SS)
Slot (mm): 0.1,0.25,0.50,0.75,1.00,1.50,2.00,3.00 and so on.
| Specification (wedge wire): |
Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70 Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00 |
| Specification (support rod): |
Width(mm): 2.30 3.00 3.30 3.70 Height(mm): 2.70 3.60 4.70 5.60 6.30 Round: From 2.50mm to 6.0mm |
| Note: other specifications available as per request | |
| Slot size | 0.10, 0.15, 0.20, 0.25, 0.30... 6.00mm also achieved upon request. |
| Material: | galvanized low carton (LCG), stainless steel (304,316 etc.) |
| Length | up to 6 meters. |
| Diameter | from 25mm to 1200mm. |
| End connection | Plain beveled ends, flanged or threaded couplings |

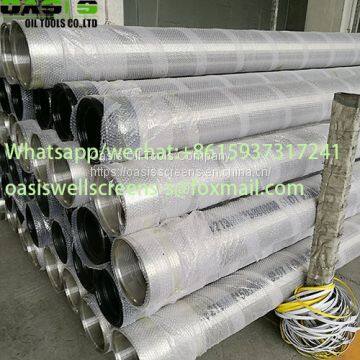

Packaging Information
Single with bubble bags and then in wooden case.
Each case is clearly marked with:
Batch number
Date of manufacture
Safe heating & application temperature
Any needs for our stainless steel johnson screens pipe, please feel free to contact me.
