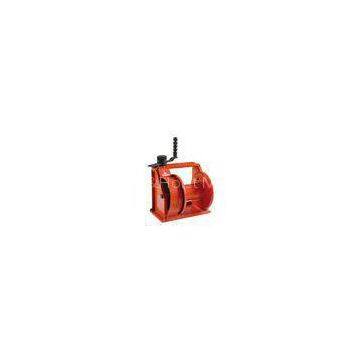

Heavy Duty Hand Lifting Winch For Hoist 250kg , Brake Hand Winch

Delivery Time:30 working days after received your payment
Certification:GS/CE

250KG - 1500KG HAND WINCH

PRODUCT SUMMARY

Multiple application winch to raise or lower boats, sailboat keels, grain augers and more. Automatic brake holds load in position when handle is released.

DESCRIPTION

series manual winch is a kind of machine tool, it is through the shook with dynamic winch drum to pull the goods. Gear drive by the winch steel wire rolling through the rotation on it to pull the rope goods, its biggest advantage is mainly manifested in the two aspects.

1. Safety

It has to be automatic braking device that, when the wire rope hoist shuthelah goods, and winch drum to keep still, brake will automatically open, this makes operate up more human nature more security.

2. Convenience

Its another biggest advantage is easy to carry , when need to all kinds of rescue work, it can from the car any direction connection, light and strong

KEY SPECS

Model	250 kg	500 kg	1000 kg	1500 kg
Rated load(kg)	250	500	1000	1500
Single speed/Double speed	single	single	single	single
Hand operated strength(N)	70	75	85	100
Dimensions (mm)	A	115	129	158	185
B	60	70	101	101
C	150	195	242	242
D	261	285	318	346
E	287	313	348	378
F	82	106	140	178
G	140	164	200	238
H	17	17	17	17
J	366	417	463	490
M	350	350	350	350
R	166	202	274	274
Φ	5x44	7x42	9x25	12x24
D.R.	12:1	17:1	26:1	26:1
Net weight(no wire rope)(kg)	11	16	38	40
