Temperature Control ON-OFF Microwave Motion Sensor 400 Watt 82x36.5x 25.5 mm

FOB Price

Negotiable / Piece

1 Piece(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Merrytek		Place of Origin	China
Model Number	MC008S T

Delivery Time:1, Sample and small order: Within 5 working days 2, Bulk order: within 3-4 weeks
Certification:CE & R&TTE

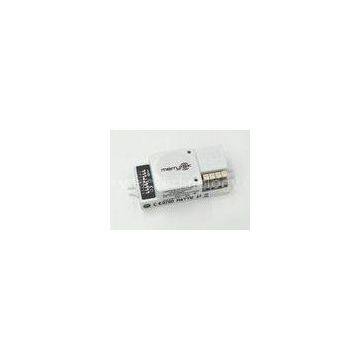

400W Temperature Control ON-OFF Microwave Motion Sensor MC008S T with CE and R&TTE approval

Description

1. Automatic switching based on motion and ambient light level.

2. Zero-crossing point operation helps protect the sensor against in-rush current.

3. 5.8GHz high frequency microwave(C-Band license-free operation)

4. 4-pole press-in terminal (L, N, N,L′),easy assembly.

5. Detection area, time delay and Temperature threshold can be precisely set via DIP switch.

6. MC008S T is a innovation motion sensor to switch on off based on movement and Temperature .offer the end user a comfortable service .

Function:

ON-OFF function

Specifications:

Operating voltage	220-240Vac, 50Hz
Rated load	Inductive:400W
HF system	5.8GHz±75MHz, ISM wave band
Power consumption	≤0.5W(standby), <1W(operation)
Transmitting power	<0.5mW
Detection zone Max.(D x H)	16m x 3m
Motion detection	0.5~3m/s
Detection angle	150°(wall installation) 360°(ceiling installation)
IP rating	IP20
Operation temperature	-20℃~60℃
Hold time	10S/60S/90S/3min/5min/10min
Detection sensitivity	10%/25%/50%/75%/100%
Temperature	22℃±2℃,24℃±2℃,26℃±2℃,28℃±2℃
Life time	30,000 hours
Guaranty	3 years

Applications:

Washroom , etc
