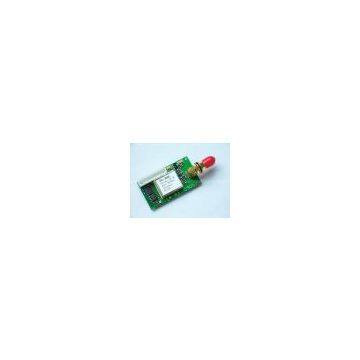

433MHz RF Data Module RS-232/RS485/TTL/USB

Data Sheet:
Power output: 5V DC (customize)

RF power: 10mW (customized 10mW to 100mW)

RF effective rate: 1,200/2,400/4,800/9,600/19,200bps selectable

Interface baud rate: 1,200/2,400/4,800/9,600/19,200bps programmable

Frequency band: 433, 450, 470, 868, 915MHz or ISM others

Interface: standard RS-232/RS-485/TTL

Communication mode: half-duplex

Offering a transparent data interface, it is suitable for any standard or non-standard user protocols

Channel: 8(default), 16/32(customized)

Receive current: <20mA(TTL connect)

Receive sensitivity: -123dBm @ 1,200bps); -118dBm @ 9,600bps)

Transmitting current: <40mA

Sleep current: <20uA

RF line-of-sight range: 600m (BER=10-5@9600bps)

1,000m (BER=10-5 @ 1,200bps)

Size: 47 x 26 x 10mm (without antenna port)


Application:

Oil and Gas Applications:

RTU/SCADA
Process Control Equipment
Natural Gas Automation
Gas Flow Measurement
Flow metering
Tank Gauging
Cathodic protection
Valve control/actuation
Instrumentation
Seismic monitoring

Telecom/Telemetry:

Data Recording
Microwave repeater sites
BTS base stations
Broadband/spread spectrum radio
VSAT's and gateways
Rural telephony
Two-way radio

Traffic Safety and Control/Transportation Aids:

Message boards
Warning signals
Emergency call boxes
Traffic counters
Intelligent transportation systems
Navigational aids
Lighting

Security:

CCTV and surveillance cameras
Lighting
Perimeter protection
Call boxes
