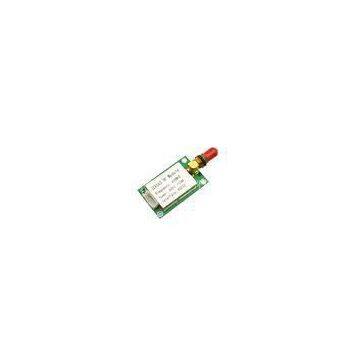

Low Consumption 100mw Long Range RF Transceiver Module With Free Antenna

RF Transmitter And Receiver in 100mw , RS232/RS485/TTL With Free Antenna JZX863

Specification:

Technical specification of JZX863:



Features:

1.Power and receiving sensitivity
The transmission power is <10mW,Receiving sensitivity: -110dbm,
Transmission current<100mA,Receiving current<10mA,sleeping current <1uA.

2. Modulation mode and Frequency
Modulation mode:FSK,Frequency:433mhz.Also capable of 315mhz,868mhz and 915mhz.

3. High anti- interference and low BER(Bit error Rate)
Based on the FSK modulation mode,the high- efficiency forward error correction channel encoding technology is used to enhance datas resistance to both burst interference and random interference and the actual bit error rate of 10-5 ~ 10-6 can be achieved when channel bit error rate is 10-2.

4. Long transmission distance
Within the range of visibility,the reliable distance is BER=10-3/1200bps>500m when the antenna is higher than 200m (BER=10-3/9600bps).

5. Transparent data transmission
Transparent data interface is offered to suit any standard or nonstandard user protocol.Any false data generated in the air can be filtrated automatically (What has been received is exactly what has been transmitted).The change time between receiving and sending is <10ms.

6. Multi- channel
The standard JZX863 configuration provides 8 channels to meet the multiple communication combination mode of the user.

7. High speed wireless communication and Large data buffer zone
When the RF baudrate is bigger than COM baudrate,allowing to transmit unlimited length data at one time,when the RF baudrate is smaller or equal to the COMs,allowing the transmission of 255 Bytes data .

8. Intelligent data control and the user doesnt need to prepare excessive programs
Even for semi duplex communication,the user doesnt need to prepare excessive programs, only receiving/transmitting the data from the interface.JZX863 will complete the other operations automatically,such as transmission/receiving conversion in the air,control,etc.

9. High reliability, small and light
Single chip radio - frequency integrated circuit and single chip MCU are used for lessened peripheral circuits,high reliability,and low failure rate.

10. Watchdog monitor
Watchdog monitors the inner function,it changes the traditional product structure and also improve the reliability of our modules.





Competitive Advantage:

Our Services:

>New and original; we offer high quality, fast delivery, competitive price for our customers.

>Please send your RFQ to get latest price.

>We will ship the items within 2-3 working days after receive the payment.

>We have a large stock and the prices are variable, so sometimes the prices we post are not accurate. If needed, please contact us for specific prices.

>Warranty of each part.
