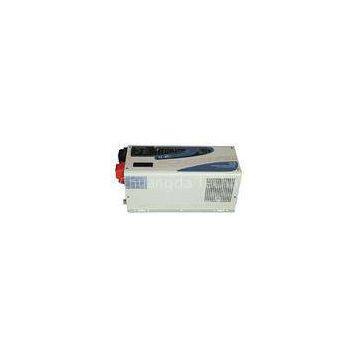

High Efficiency 50Hz / 60Hz 110V / 120V Off-Grid Solar Inverter 3000W

IVM SERIES INVERTER

Model No.

IVM 1000

IVM 2000

IVM 3000

IVM 4000

IVM 5000

IVM 6000

Nominal Power

1000W

2000W

3000W

4000W

5000W

6000W

AC Input　　　　　　

Phase & waveform

Single phase & sinewave

Voltage

120VAC/230VAC

Acceptable Voltage

194-243VAC164-243VAC(wide mode)

Line Low Transfer

85V±4%/184(154 wide mode±4%)

Line Low Return

95V±4%/194(164 wide mode±4%)

Line high Transfer

135V±4%/253±4%

Line high Return

127V±4%/243±4%

Frequency

50Hz or 60Hz (auto sensing)

Line Low Transfer

47Hz for 50Hz,57Hz for 60Hz

Line high Transfer

55Hz for 50Hz,65Hz for 60Hz

Output　　　　　　

Phase & waveform

Single phase & sinewave(bypass mode sync to input)

Voltage

230VAC(bypass mode sync to input)

Voltage Regulation

±10%rms(bypass mode sync to input)

Frequency

50Hz±0.3Hz(bypass mode sync to input)

Crest Power

3 times of ratings

Short Circuit Protection

Yes,shutdown after 10 minutes

Power Factor

0.9-1.0

DC Input　　　　　　

Battery Voltage

12V/24V

12V/24V/48V

24V/48V

Minimum Start Voltage

10V for 12V,20V for 24V,40V for 48V

Low Battery Alarm

10.5V for 12V,21V for 24V,42V for 48V

Low Battery Transfer

10V for 12V,20V for 24V,40V for 48V

High Voltage Alarm

16V for 12V,32V for 24V,64V for 48V

Max Charging Current

70A35A

Over Charge Voltage

15.7V for 12V,31.4V for 24V,62.8V for 48V

Transfer Efficiency　　　　　　

line Mode

＞95%

Battery Mode

＞88%

power saver

Available when the load is less than 25 Watts

Indicators

7-LED Display

From the right to the left,LED1 line mode (green lighting),LED2 inverter mode

(green lighting),LED3 charging mode(yellow lighting),LED4 Fully charged 　　　　　

(green lighting),LED5 over heat shutdown(red lighting),LED6 Overloaded

shutdown(red lighting),LED7 Saving Mode(green lighting)
